Schneider Electric ZART8D Remote Disp. 2 Aux. Pushbutton
Schneider Electric
$648.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZART8D Remote Disp. 2 Aux. Pushbutton

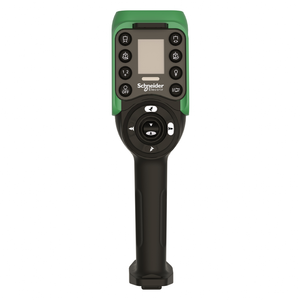

This Harmony eXLhoist / XAR black remote control (transmitter) has 2 configurable auxiliary push buttons with 6 configurable motion push buttons. It has LCD display with rechargeable battery. This remote control (transmitter) with display is designed as a transmitter for wireless remote control system. It has 6 configurable motion push buttons and 2 configurable auxiliary push buttons and can operate at a distance of 50m. It is compatible with base station ZARB18W and ZARB18H. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh (heavy) environments. It provides complete innovative crane operator control solutions to help improve machine and crane operator efficiency. Wireless transmission allows remote control (transmitter) to transmit steady signal, commands and information from the operator to the machine.
- Mechanical Robustness:
- free fall resistance 4.5 m IEC 60068-2-27
- Product Certifications:
- CE || UL || JIS || EAC || C-tick || CSA || KC
- Communication Network Type:
- wireless bluetooth low energy
- Relative Humidity:
- 0-95 % -20-60 °C operating
- Operating Distance:
- 50 m
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ambient Air Temperature For Storage:
- -20-45 °C
- Operating Altitude:
- 0...6561.68 ft (0...2000 m)
- Material:
- enclosure PC (polycarbonate) || enclosure PBT (polybutylene terephthalate) || Cover PP (polypropylene) || protective cover EPDM rubber
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Rohs Exemption Information:
- Yes
- Function Available:
- accelerometer function || vibrator function
- Storage Altitude:
- 0-3000 m
- Ip Degree Of Protection:
- IP65
- Control Button Type:
- 6 configurable motion push-button || 2 configurable auxiliary push-button
- Circularity Profile:
- ENVEOLI1403029EN
- Display Type:
- LCD display 34 x 42 mm
- Depth:
- 90 mm
- Radio Agreement:
- ANATEL || ICASA || SRRC || FCC || ARIB || RSS
- Ambient Air Temperature For Operation:
- -20-60 °C
- Product Or Component Type:
- hand-held remote control
- Vibration Resistance:
- 0.075 mm 10-55 Hz)IEC 60068-2-6
- Range Of Product:
- Harmony eXLhoist
- Response Time:
- < 300 ms full duplex
- Mercury Free:
- Yes
- Maximum Sensing Distance:
- 100 m in free field
- Height:
- 340 mm
- Shock Resistance:
- 100 gn IEC 60068-2-27
- Transmission Frequency:
- 2.4 GHz
- China Rohs Regulation:
- X
- Net Weight:
- 0.65 kg
- Width:
- 100 mm
- Autonomy:
- 30 h
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Charging Time:
- 900 s
- Device Short Name:
- ZART
- Mechanical Durability:
- 5000000 cycles
- Environmental Disclosure:
- ENVPEP1403029EN
- Nema Degree Of Protection:
- NEMA 4
- Service Life:
- 5 year(s)
- Catalog:
- View
- Datasheet:
- View
