Schneider Electric ZB4AEQ4020 Pushbutton, Special
Schneider Electric
$18.06
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB4AEQ4020 Pushbutton, Special

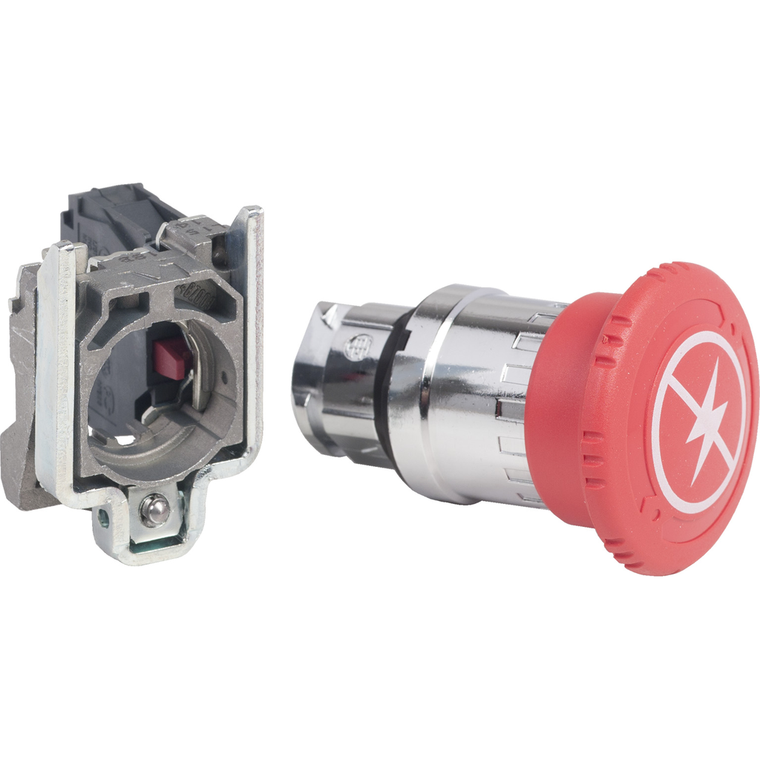

This head for push button is a separate component of the range of control and signaling units, Harmony XB4, metal, diameter 22mm. It has a chromium-plated metal bezel. It is supplied with a red mushroom. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66.
- Sale Per Indivisible Quantity:
- 1
- Sustainable Offer Status:
- Green Premium product
- China Rohs Regulation:
- X
- Protective Treatment:
- TH
- Ambient Air Temperature For Storage:
- -40-70 °C
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Environmental Disclosure:
- ENVPEP1808008EN
- Mercury Free:
- Yes
- Warranty:
- 18 months
- Ip Degree Of Protection:
- IP66 IEC 60529
- Overvoltage Category:
- class I IEC 60536
- Ambient Air Temperature For Operation:
- -25-70 °C
- Device Short Name:
- ZB4
- Range Of Product:
- Harmony XB4
- Rohs Exemption Information:
- Yes
- Product Or Component Type:
- head for non-illuminated push-button
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Head Type:
- standard
- Circularity Profile:
- N/A
- Mounting Diameter:
- 22 mm
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
