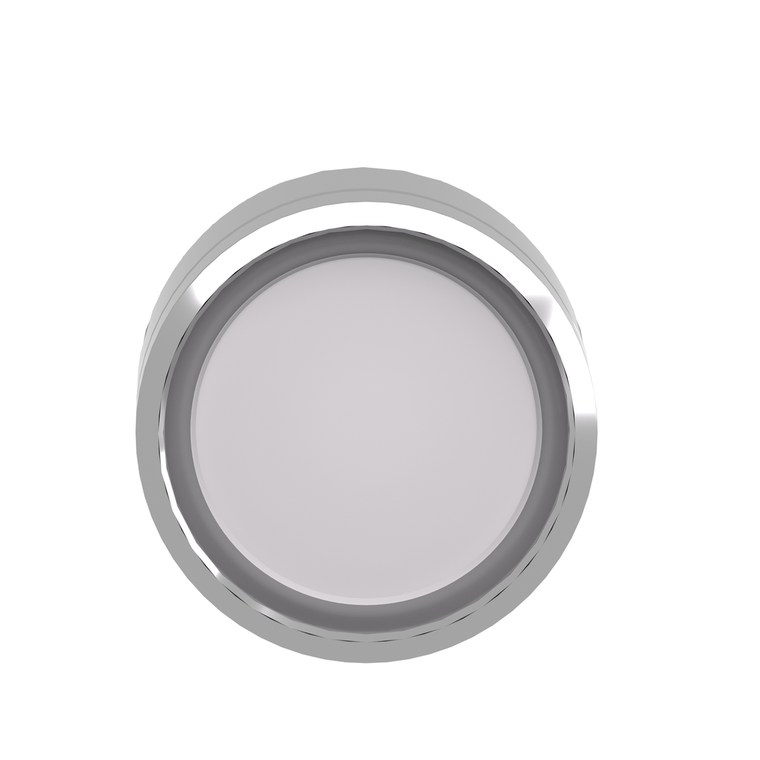

Schneider Electric ZB4BA18 Pushbutton Operator Head
Schneider Electric
$16.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, plain lens flush white button head with transparent cap is used for insertion of legend, operates with a spring return / impulse mechanism. This button head with transparent cap provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly and used for insertion of legend. It is clearly distinguishable visually at a distance thanks to clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Circularity Profile:
- ENVEOLI1808008EN
- Type Of Operator:
- spring return
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Warranty:
- 18 months
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Bezel Material:
- chromium plated metal
- Cad Overall Depth:
- 30 mm
- Mounting Diameter:
- 22 mm
- Device Presentation:
- basic element
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || C3 6 single front mounting || C4 6 single and doub
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Operator Additional Information:
- for insertion of legend
- Reach Free Of Svhc:
- Yes
- Ambient Air Temperature For Operation:
- -40-70 °C
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Net Weight:
- 0.028 kg
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Environmental Disclosure:
- ENVPEP1808008EN
- Standards:
- IEC 60947-1 || UL 508 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-5 || IEC 60947-5-4 || JIS C8201-5-1 || JIS C8201-1
- China Rohs Regulation:
- X
- Mechanical Durability:
- 10000000 cycles
- Head Type:
- standard
- Protective Treatment:
- TH
- Product Certifications:
- DNV || GL || LROS (Lloyds register of shipping) || CSA || UL Listed || BV
- Overvoltage Category:
- class I IEC 60536
- Cad Overall Height:
- 29 mm
- Rohs Exemption Information:
- Yes
- Product Or Component Type:
- head for illuminated push-button
- Product Compatibility:
- universal LED
- Ambient Air Temperature For Storage:
- -40-70 °C
- Cad Overall Width:
- 29 mm
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Sustainable Offer Status:
- Green Premium product
- Toxic Heavy Metal Free:
- Yes
- Ik Degree Of Protection:
- IK06 IEC 62262
- Operator Profile:
- white flush, unmarked
- Range Of Product:
- Harmony XB4
- Shape Of Signaling Unit Head:
- round
- Device Short Name:
- ZB4
- Mercury Free:
- Yes
- Sale Per Indivisible Quantity:
- 1
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
