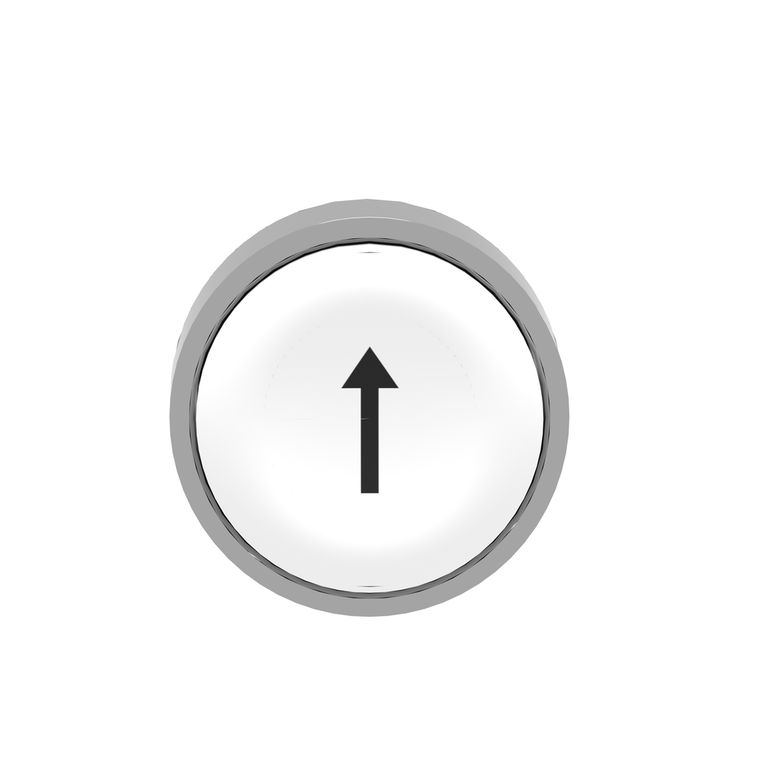

Schneider Electric ZB4BA334 Pushbutton Operator Head
Schneider Electric
$18.60
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, white button head operates with a spring return mechanism and has a chromium-plated metal bezel. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Bezel Material:
- chromium plated metal
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Head Type:
- standard
- Mounting Diameter:
- 22 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Product Certifications:
- DNV || BV || CSA || LROS (Lloyds register of shipping) || GL || UL Listed
- Cad Overall Height:
- 29 mm
- Sustainable Offer Status:
- Green Premium product
- Rohs Exemption Information:
- Yes
- Mechanical Durability:
- 10000000 cycles
- Device Short Name:
- ZB4
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Standards:
- CSA C22.2 No 14 || IEC 60947-5-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-5 || IEC 60947-1 || JIS C8201-1
- Environmental Disclosure:
- ENVPEP1808008EN
- Cad Overall Depth:
- 28 mm
- Cad Overall Width:
- 29 mm
- Reach Free Of Svhc:
- Yes
- Mercury Free:
- Yes
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Range Of Product:
- Harmony XB4
- Warranty:
- 18 months
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Sale Per Indivisible Quantity:
- 1
- Ambient Air Temperature For Storage:
- -40-70 °C
- Overvoltage Category:
- class I IEC 60536
- Product Or Component Type:
- head for non-illuminated push-button
- Protective Treatment:
- TH
- Toxic Heavy Metal Free:
- Yes
- Shape Of Signaling Unit Head:
- round
- Ambient Air Temperature For Operation:
- -40-70 °C
- Operator Profile:
- white flush, up arrow black)
- Type Of Operator:
- spring return
- Ik Degree Of Protection:
- IK06 IEC 50102
- Device Presentation:
- basic element
- China Rohs Regulation:
- X
- Circularity Profile:
- ENVEOLI1808008EN
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
