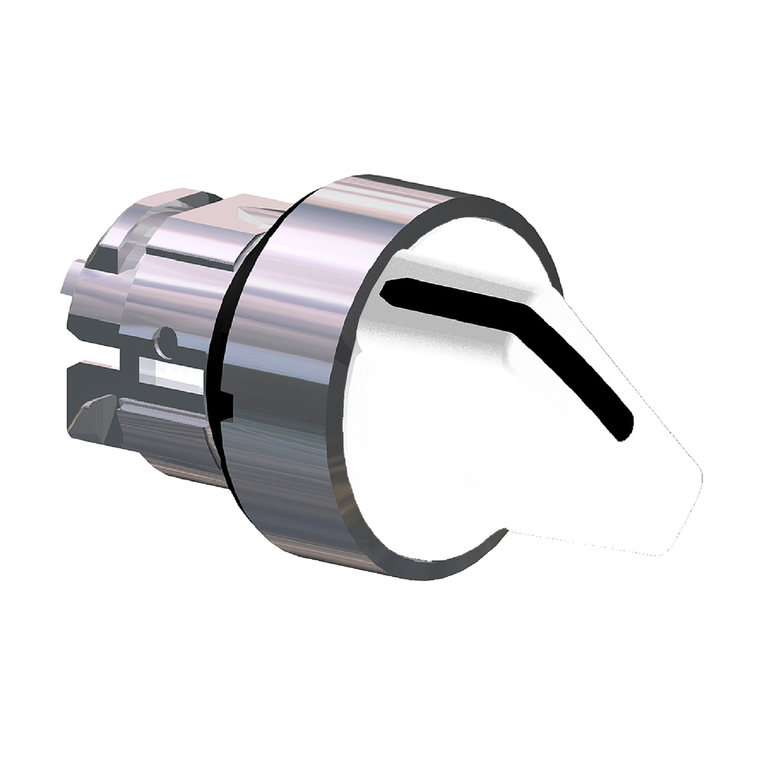

Schneider Electric ZB4BD201 White Selector Head
Schneider Electric
$36.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, white selector switch head with standard handle has 2 positions, operates with stay-put mechanism. This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Sustainable Offer Status:
- Green Premium product
- Cad Overall Height:
- 29 mm
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Overvoltage Category:
- class I IEC 60536
- Mechanical Durability:
- 1000000 cycles
- Circularity Profile:
- ENVEOLI1808008EN
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Toxic Heavy Metal Free:
- Yes
- Product Certifications:
- BV || UL Listed || GL || LROS (Lloyds register of shipping) || CSA || DNV
- Warranty:
- 18 months
- Shape Of Signaling Unit Head:
- round
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Type Of Operator:
- stay put
- Protective Treatment:
- TH
- Environmental Disclosure:
- ENVPEP1808008EN
- Ik Degree Of Protection:
- IK06 IEC 50102
- Net Weight:
- 0.04 kg
- Product Or Component Type:
- head for selector switch
- Standards:
- CSA C22.2 No 14 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-5 || UL 508 || JIS C8201-5-1 || JIS C8201-1
- Mounting Diameter:
- 22 mm
- Device Short Name:
- ZB4
- Device Presentation:
- basic element
- Cad Overall Width:
- 29 mm
- Ip Degree Of Protection:
- IP67 IEC 60529 || IP69 || IP69K
- Operator Profile:
- white standard handle
- Mercury Free:
- Yes
- Cad Overall Depth:
- 44 mm
- Bezel Material:
- chromium plated metal
- Head Type:
- standard
- Operator Position Information:
- 2 positions 90°
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Sale Per Indivisible Quantity:
- 1
- China Rohs Regulation:
- X
- Range Of Product:
- Harmony XB4
- Reach Free Of Svhc:
- Yes
- Ambient Air Temperature For Storage:
- -40-70 °C
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Operation:
- -40-70 °C
