Schneider Electric ZB4BD205 Amber Selector Head
Schneider Electric
$36.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

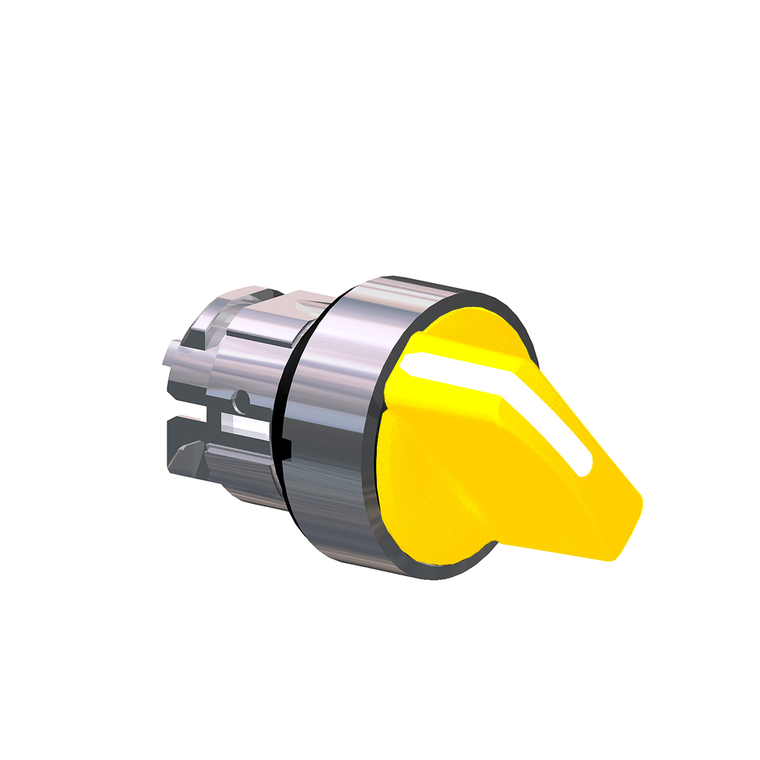

Schneider Electric ZB4BD205 Amber Selector Head
This Harmony XB4, yellow selector switch head with standard handle has 2 positions, operates with stay-put mechanism. This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Mercury Free:
- Yes
- Overvoltage Category:
- class I IEC 60536
- Type Of Operator:
- stay put
- Device Short Name:
- ZB4
- Operator Position Information:
- 2 positions 90°
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Range Of Product:
- Harmony XB4
- Ik Degree Of Protection:
- IK06 IEC 50102
- Sustainable Offer Status:
- Green Premium product
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc:
- Yes
- Cad Overall Width:
- 29 mm
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1
- Warranty:
- 18 months
- Operator Profile:
- yellow standard handle
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- China Rohs Regulation:
- X
- Circularity Profile:
- ENVEOLI1808008EN
- Environmental Disclosure:
- ENVPEP1808008EN
- Cad Overall Height:
- 29 mm
- Protective Treatment:
- TH
- Standards:
- EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-5 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-1 || JIS C8201-5-1 || JIS C8201-1
- Product Or Component Type:
- head for selector switch
- Rohs Exemption Information:
- Yes
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Ambient Air Temperature For Storage:
- -40-70 °C
- Toxic Heavy Metal Free:
- Yes
- Sale Per Indivisible Quantity:
- 1
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Cad Overall Depth:
- 44 mm
- Mechanical Durability:
- 1000000 cycles
- Device Presentation:
- basic element
- Product Certifications:
- GL || UL Listed || CSA || DNV || LROS (Lloyds register of shipping) || BV
- Shape Of Signaling Unit Head:
- round
- Bezel Material:
- chromium plated metal
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Head Type:
- standard
- Ip Degree Of Protection:
- IP67 IEC 60529 || IP69 || IP69K
- Net Weight:
- 0.04 kg
- Ambient Air Temperature For Operation:
- -40-70 °C
- Mounting Diameter:
- 22 mm
