Schneider Electric ZB4BD912 Potentiometer Op. Head

Schneider Electric ZB4BD912 Potentiometer Op. Head

Schneider Electric
SKU:
ZB4BD912
|
UPC:
3389110896879
Availability:
Contact us to confirm availability and lead times.
$142.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

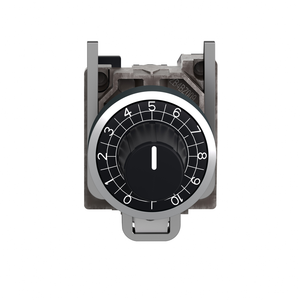

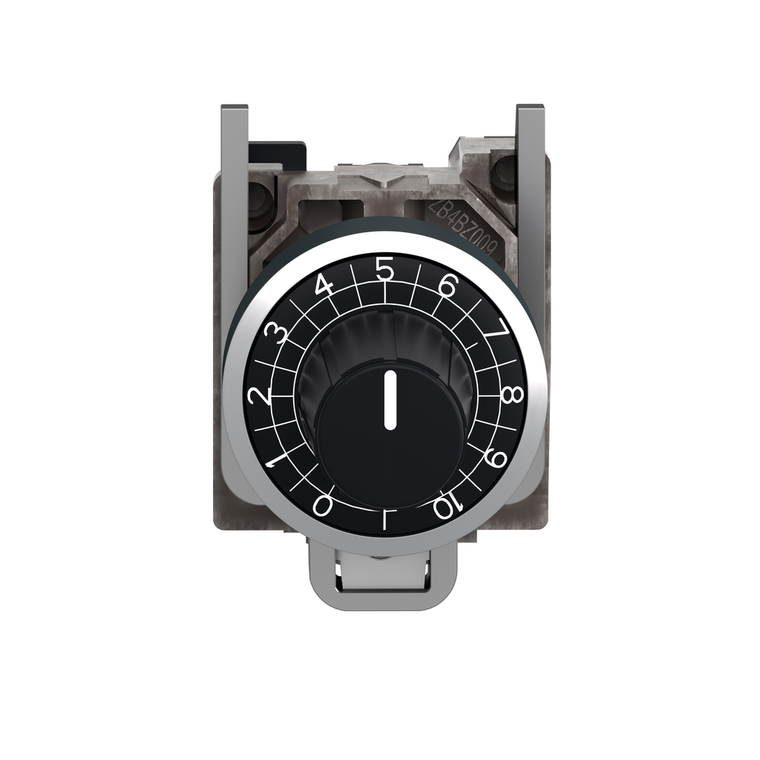

This Harmony XB4, head and mounting base is used for potentiometer application. This head and mounting base for potentiometer provides an ergonomic external interface for controlling your machines thanks to its knurled knob head. It is ideal for controlling key parameters of automation components like drives and inverters and is easily installed and replaced on compatible potentiometers. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Additional Information
Ik Degree Of Protection:
IK03 IEC 50102
China Rohs Regulation:
X
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Rohs Exemption Information:
Yes
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Protective Treatment:
TH
Mounting Diameter:
22 mm
Electrical Shock Protection Class:
class I IEC 60536
Warranty:
18 months
Device Short Name:
ZB4
Bezel Material:
chromium plated metal
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Storage:
-40-70 °C
Net Weight:
0.08 kg
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Head Type:
standard
Ambient Air Temperature For Operation:
-40-70 °C
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Sustainable Offer Status:
Green Premium product
Range Of Product:
Harmony XB4
Shape Of Signaling Unit Head:
round
Standards:
UL 508 || IEC 60947-1 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-5 || JIS C8201-1
Ip Degree Of Protection:
IP66 IEC 60529
Reach Free Of Svhc:
Yes
Toxic Heavy Metal Free:
Yes
Product Certifications:
LROS (Lloyds register of shipping) || CSA || BV || GL || DNV || UL Listed
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Mercury Free:
Yes
Product Compatibility:
for use with Ø 6 mm shaft
Product Or Component Type:
head + mounting base for potentiometer
Operator Profile:
knurled knob, with white)
Circularity Profile:
ENVEOLI1808008EN
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Sale Per Indivisible Quantity:
1
Device Presentation:
basic element
Environmental Disclosure:
ENVPEP1808008EN
