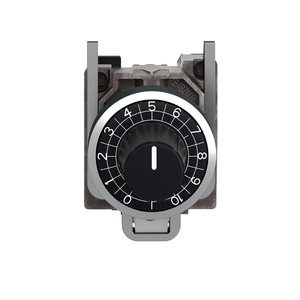

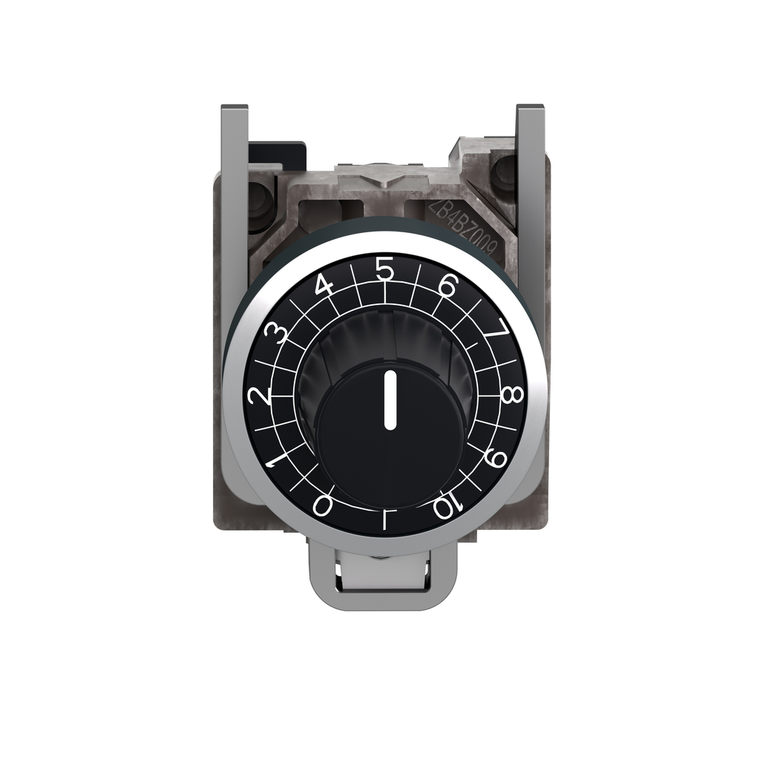

Schneider Electric ZB4BD922 Potentiometer Op. Head
Schneider Electric
$142.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB4BD922 Potentiometer Op. Head
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, head and mounting base is used for potentiometer application. This head and mounting base for potentiometer provides an ergonomic external interface for controlling your machines thanks to its knurled knob head. It is ideal for controlling key parameters of automation components like drives and inverters and is easily installed and replaced on compatible potentiometers. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Protective Treatment:
- TH
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Standards:
- IEC 60947-5-4 || UL 508 || JIS C8201-5-1 || IEC 60947-5-1 || IEC 60947-5-5 || IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-1
- Operator Profile:
- knurled knob, with white)
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Device Presentation:
- basic element
- Ik Degree Of Protection:
- IK03 IEC 50102
- Product Certifications:
- DNV || CSA || LROS (Lloyds register of shipping) || GL || UL Listed || BV
- Warranty:
- 18 months
- Toxic Heavy Metal Free:
- Yes
- Sale Per Indivisible Quantity:
- 1
- Ip Degree Of Protection:
- IP66 IEC 60529
- Mounting Diameter:
- 22 mm
- Device Short Name:
- ZB4
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ambient Air Temperature For Storage:
- -40-70 °C
- Mercury Free:
- Yes
- Reach Free Of Svhc:
- Yes
- Rohs Exemption Information:
- Yes
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Bezel Material:
- chromium plated metal
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Net Weight:
- 0.08 kg
- Ambient Air Temperature For Operation:
- -40-70 °C
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Shape Of Signaling Unit Head:
- round
- Range Of Product:
- Harmony XB4
- Sustainable Offer Status:
- Green Premium product
- Head Type:
- standard
- Circularity Profile:
- ENVEOLI1808008EN
- China Rohs Regulation:
- X
- Product Or Component Type:
- head + mounting base for potentiometer
- Product Compatibility:
- for use with à 6.35 mm shaft
- Electrical Shock Protection Class:
- class I IEC 60536
- Environmental Disclosure:
- ENVPEP1808008EN
