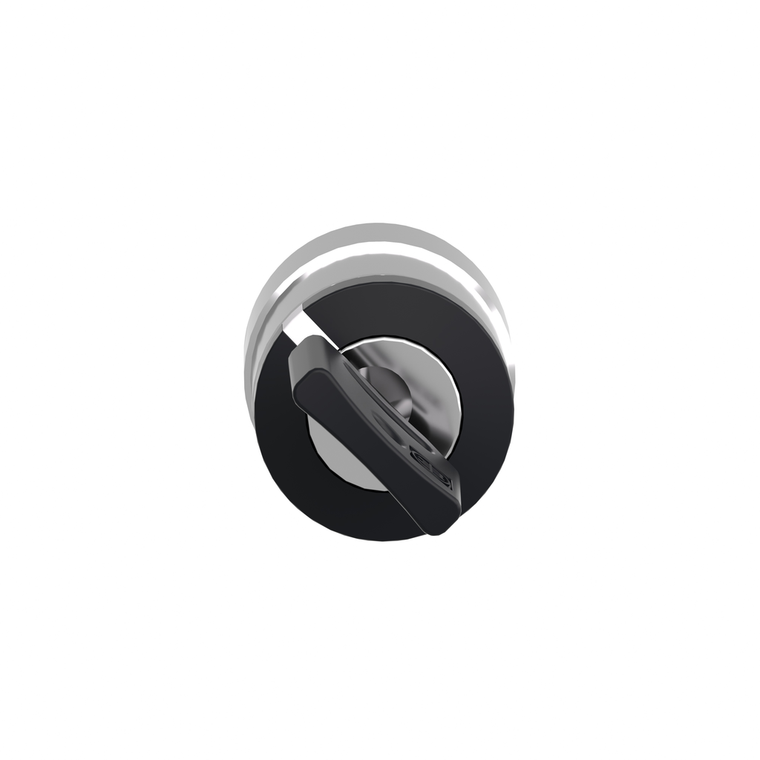

Schneider Electric ZB4BG214 Key Selector Operating He

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB4BG214 Key Selector Operating He

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB4BG214

UPC:

3389110121377

MPN:

Condition:

New

Device Short Name:

ZB4

Overvoltage Category:

class I IEC 60536

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Warranty:

18 months

Cad Overall Height:

29 mm

Bezel Material:

chromium plated metal

Key Withdrawal Position:

left

Operator Profile:

black key switch

Environmental Disclosure:

ENVPEP1808008EN

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Sale Per Indivisible Quantity:

1

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Electrical Composition Code:

C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Sustainable Offer Status:

Green Premium product

Type Of Operator:

stay put

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Device Presentation:

basic element

Head Type:

standard

Cad Overall Width:

29 mm

Type Of Keylock:

key 520E

Operator Position Information:

2 positions 90°

Mounting Diameter:

22 mm

Ambient Air Temperature For Storage:

-40-70 °C

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Ambient Air Temperature For Operation:

-40-70 °C

Standards:

EN/IEC 60947-5-1 || GB 14048.5 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || UL 508 || EN/IEC 60947-5-4

Product Or Component Type:

head for key selector switch

Product Certifications:

GL || BV || LROS (Lloyds register of shipping) || UL Listed || CSA || DNV

Protective Treatment:

TH

Circularity Profile:

ENVEOLI1808008EN

Cad Overall Depth:

72 mm

Rohs Exemption Information:

Yes

Range Of Product:

Harmony XB4

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Mechanical Durability:

1000000 cycles

Shape Of Signaling Unit Head:

round

China Rohs Regulation:

X

Net Weight:

0.098 kg

Mercury Free:

Yes
