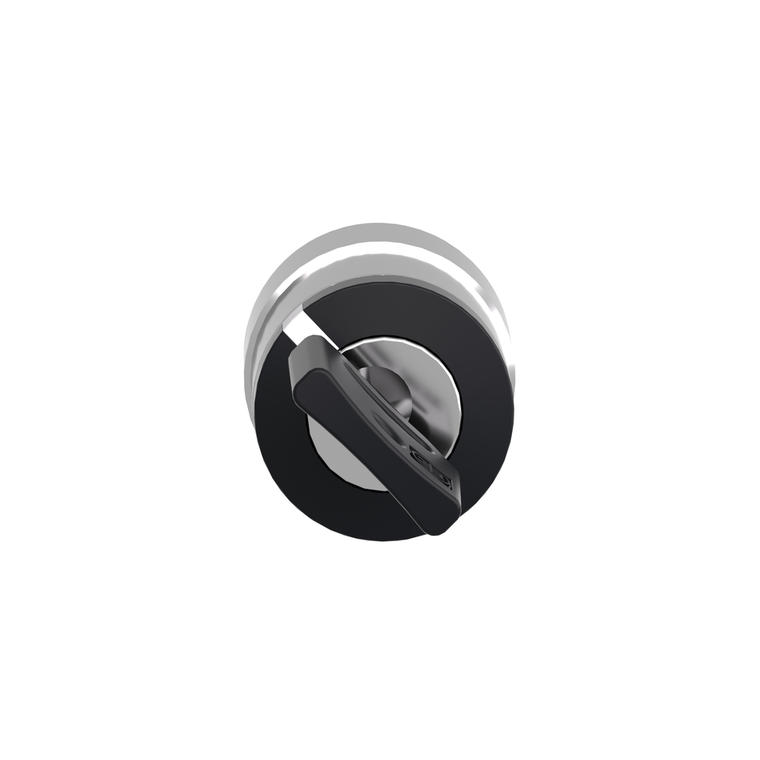

Schneider Electric ZB4BG5 Key Selector Operating He

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB4BG5 Key Selector Operating He

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB4BG5

UPC:

3389110889239

MPN:

Condition:

New

Environmental Disclosure:

ENVPEP1808008EN

Head Type:

standard

Rohs Exemption Information:

Yes

Ik Degree Of Protection:

IK06 with keyhole cover ZBGP conforming to IEC 50102

Net Weight:

0.098 kg

Protective Treatment:

TH

Range Of Product:

Harmony XB4

Sustainable Offer Status:

Green Premium product

Mechanical Durability:

1000000 cycles

Warranty:

18 months

Cad Overall Depth:

72 mm

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

China Rohs Regulation:

X

Product Certifications:

UL Listed || GL || LROS (Lloyds register of shipping) || CSA || BV || DNV

Ambient Air Temperature For Storage:

-40-70 °C

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Product Or Component Type:

head for key selector switch

Electrical Composition Code:

C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Bezel Material:

chromium plated metal

Key Withdrawal Position:

left and right

Ambient Air Temperature For Operation:

-40-70 °C

Mounting Diameter:

22 mm

Standards:

EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || GB 14048.5 || EN/IEC 60947-1 || EN/IEC 60947-5-5 || UL 508

Mercury Free:

Yes

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Device Short Name:

ZB4

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Shape Of Signaling Unit Head:

round

Sale Per Indivisible Quantity:

1

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Cad Overall Height:

29 mm

Circularity Profile:

ENVEOLI1808008EN

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Cad Overall Width:

29 mm

Type Of Keylock:

key 455

Device Presentation:

basic element

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Operator Position Information:

3 positions +/- 45°

Overvoltage Category:

class I IEC 60536

Operator Profile:

black key switch
