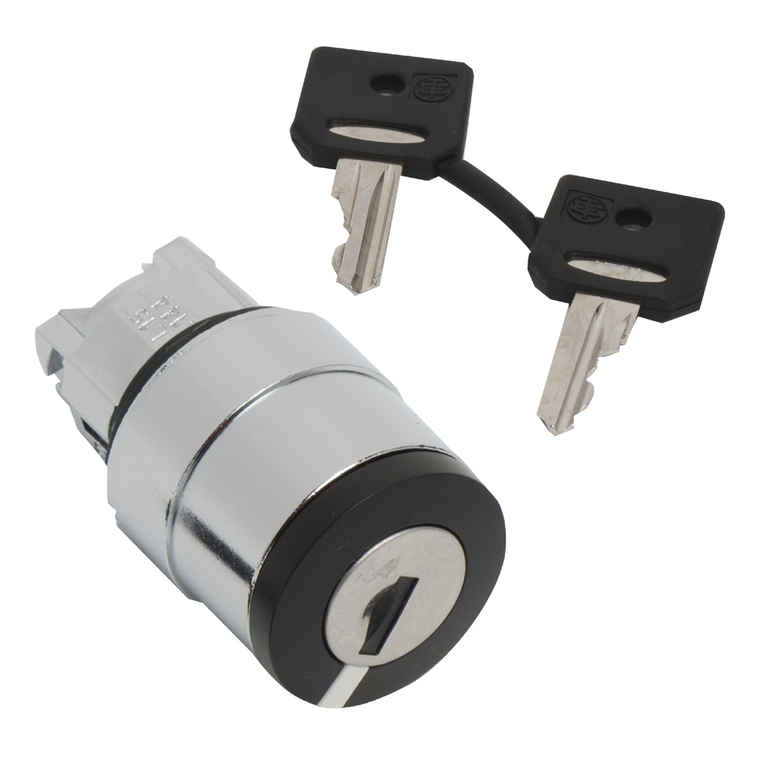

Schneider Electric ZB4BG714 Key Selector Operating He

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB4BG714 Key Selector Operating He

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB4BG714

UPC:

3.38911E+12

MPN:

Condition:

New

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

China Rohs Regulation:

X

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Product Certifications:

BV || LROS (Lloyds register of shipping) || DNV || GL || UL Listed || CSA

Device Short Name:

ZB4

Head Type:

standard

Cad Overall Width:

29 mm

Device Presentation:

basic element

Cad Overall Depth:

72 mm

Ambient Air Temperature For Operation:

-40-70 °C

Cad Overall Height:

29 mm

Type Of Operator:

spring return

Operator Profile:

black key switch

Mechanical Durability:

1000000 cycles

Standards:

EN/IEC 60947-5-5 || GB 14048.5 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4

Bezel Material:

chromium plated metal

Circularity Profile:

ENVEOLI1808008EN

Type Of Keylock:

key 520E

Return:

to centre

Overvoltage Category:

class I IEC 60536

Ambient Air Temperature For Storage:

-40-70 °C

Rohs Exemption Information:

Yes

Mercury Free:

Yes

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Range Of Product:

Harmony XB4

Electrical Composition Code:

C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Protective Treatment:

TH

Mounting Diameter:

22 mm

Warranty:

18 months

Sale Per Indivisible Quantity:

1

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Sustainable Offer Status:

Green Premium product

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Environmental Disclosure:

ENVPEP1808008EN

Net Weight:

0.098 kg

Operator Position Information:

3 positions +/- 45°

Product Or Component Type:

head for key selector switch

Shape Of Signaling Unit Head:

round

Key Withdrawal Position:

center

Datasheet:

View
