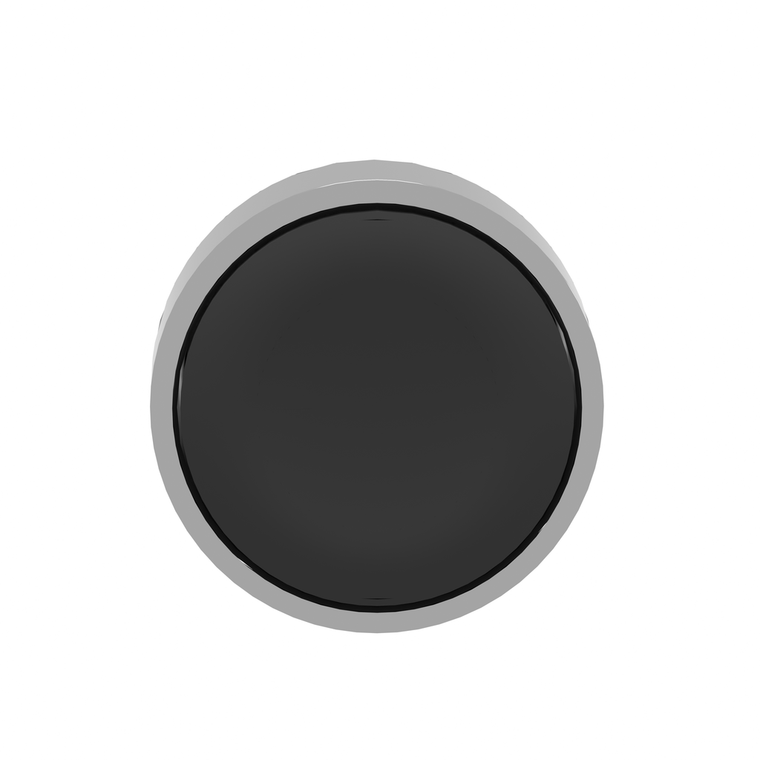

Schneider Electric ZB4BH02 Pushbutton Operator Head

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB4BH02 Pushbutton Operator Head

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB4BH02

UPC:

3389110122602

MPN:

Condition:

New

Type Of Operator:

push-push

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Reach Free Of Svhc:

Yes

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Overvoltage Category:

class I IEC 60536

Protective Treatment:

TH

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Warranty:

18 months

Bezel Material:

chromium plated metal

Shape Of Signaling Unit Head:

round

Product Or Component Type:

head for non-illuminated push-button

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Cad Overall Depth:

28 mm

Cad Overall Width:

29 mm

Ik Degree Of Protection:

IK06 IEC 50102

Head Type:

standard

Operator Profile:

black flush, unmarked

Mounting Diameter:

22 mm

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Mercury Free:

Yes

China Rohs Regulation:

X

Sale Per Indivisible Quantity:

1

Circularity Profile:

ENVEOLI1808008EN

Rohs Exemption Information:

Yes

Device Presentation:

basic element

Cad Overall Height:

29 mm

Standards:

IEC 60947-1 || JIS C8201-5-1 || IEC 60947-5-4 || UL 508 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-5 || JIS C8201-1

Electrical Composition Code:

C11 3 single front mounting || C15 1 single front mounting || C9 3 single front mounting

Toxic Heavy Metal Free:

Yes

Environmental Disclosure:

ENVPEP1808008EN

Ambient Air Temperature For Storage:

-40-70 °C

Range Of Product:

Harmony XB4

Ambient Air Temperature For Operation:

-40-70 °C

Product Certifications:

CSA || UL Listed || BV || GL || DNV || LROS (Lloyds register of shipping)

Device Short Name:

ZB4

Sustainable Offer Status:

Green Premium product

Mechanical Durability:

2000000 cycles
