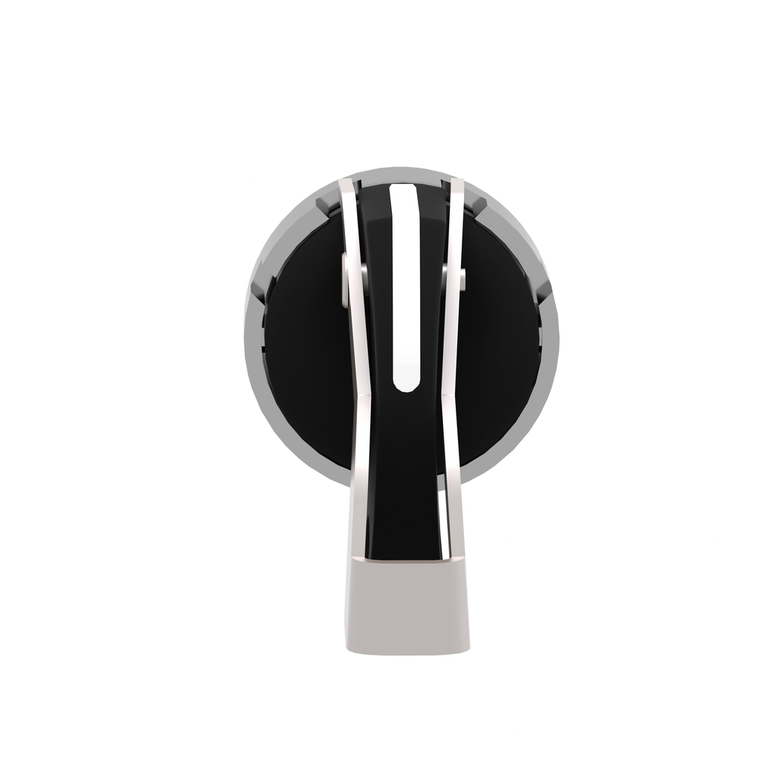

Schneider Electric ZB4BJ294 Padlockable Selector Head
Schneider Electric
$72.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, black selector switch head with padlockable long handle has 2 positions, operates with stay-put mechanism with locking on left and right position. This switch head provides an ergonomic interface for controlling your machines. It is supplied with padlockable long handle to provide a secure manner for your authorized staff to make change in an operation. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Protective Treatment:
- TH
- Reach Free Of Svhc:
- Yes
- Product Or Component Type:
- head for selector switch
- Locking Position:
- on the left or on the right
- Range Of Product:
- Harmony XB4
- Rohs Exemption Information:
- Yes
- Mounting Diameter:
- 22 mm
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Net Weight:
- 0.048 kg
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Overvoltage Category:
- class I IEC 60536
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Toxic Heavy Metal Free:
- Yes
- Bezel Material:
- chromium plated metal
- Device Presentation:
- basic element
- Cad Overall Depth:
- 50 mm
- Standards:
- IEC 60947-5-5 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || CSA C22.2 No 14 || IEC 60947-1 || IEC 60947-5-1 || JIS C8201-1
- Ik Degree Of Protection:
- IK06 IEC 50102
- Sustainable Offer Status:
- Green Premium product
- China Rohs Regulation:
- X
- Sale Per Indivisible Quantity:
- 1
- Product Certifications:
- CSA || LROS (Lloyds register of shipping) || UL Listed || DNV || BV || GL
- Warranty:
- 18 months
- Ambient Air Temperature For Storage:
- -40-70 °C
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1
- Operator Position Information:
- 2 positions 90°
- Ip Degree Of Protection:
- IP67 IEC 60529 || IP69 || IP69K
- Type Of Operator:
- stay put
- Device Short Name:
- ZB4
- Operator Profile:
- black long handle
- Cad Overall Width:
- 29 mm
- Environmental Disclosure:
- ENVPEP1808008EN
- Cad Overall Height:
- 38 mm
- Head Type:
- standard
- Operator Additional Information:
- padlockable
- Ambient Air Temperature For Operation:
- -40-70 °C
- Shape Of Signaling Unit Head:
- round
- Circularity Profile:
- ENVEOLI1808008EN
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Mechanical Durability:
- 1000000 cycles
