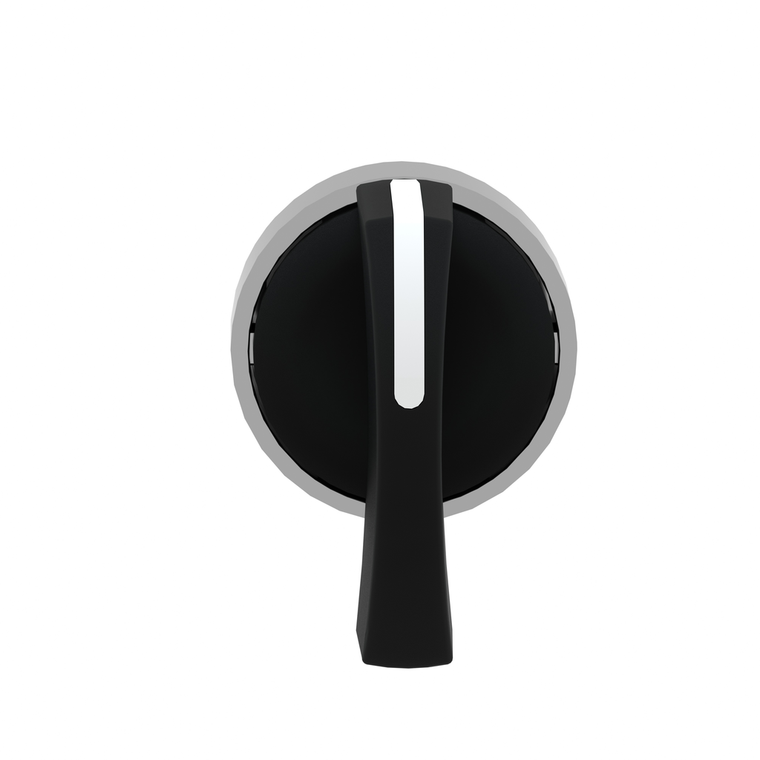

Schneider Electric ZB4BJ5 Selector Operating Head

Schneider Electric ZB4BJ5 Selector Operating Head

Schneider Electric
SKU:
ZB4BJ5
|
UPC:
3389110889079
Availability:
Contact us to confirm availability and lead times.
$29.40
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony XB4, black head with long handle has 3 positions, operates with spring return to center mechanism. This switch head with long handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Additional Information
Device Short Name:
ZB4
Rohs Exemption Information:
Yes
Net Weight:
0.04 kg
Sale Per Indivisible Quantity:
1
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Reach Free Of Svhc:
Yes
Ambient Air Temperature For Operation:
-40-70 °C
Ik Degree Of Protection:
IK06 IEC 50102
Overvoltage Category:
class I IEC 60536
Shape Of Signaling Unit Head:
round
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Operator Position Information:
3 positions +/- 45°
Standards:
JIS C8201-5-1 || IEC 60947-1 || IEC 60947-5-4 || IEC 60947-5-5 || UL 508 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
Product Certifications:
UL Listed || DNV || LROS (Lloyds register of shipping) || BV || GL || CSA
Circularity Profile:
ENVEOLI1808008EN
Sustainable Offer Status:
Green Premium product
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mechanical Durability:
1000000 cycles
Bezel Material:
chromium plated metal
Mercury Free:
Yes
Toxic Heavy Metal Free:
Yes
Operator Profile:
black long handle
Environmental Disclosure:
ENVPEP1808008EN
Range Of Product:
Harmony XB4
Mounting Diameter:
22 mm
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Operator Additional Information:
non padlockable
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Electrical Composition Code:
C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting
Head Type:
standard
Device Presentation:
basic element
Ambient Air Temperature For Storage:
-40-70 °C
Protective Treatment:
TH
Ip Degree Of Protection:
IP67 IEC 60529 || IP69 || IP69K
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Cad Overall Height:
38 mm
Reach Regulation:
Free of Substances of Very High Concern above the threshold
China Rohs Regulation:
X
Warranty:
18 months
Product Or Component Type:
head for selector switch
Type Of Operator:
to centre spring return
Cad Overall Width:
29 mm
Cad Overall Depth:
44 mm
