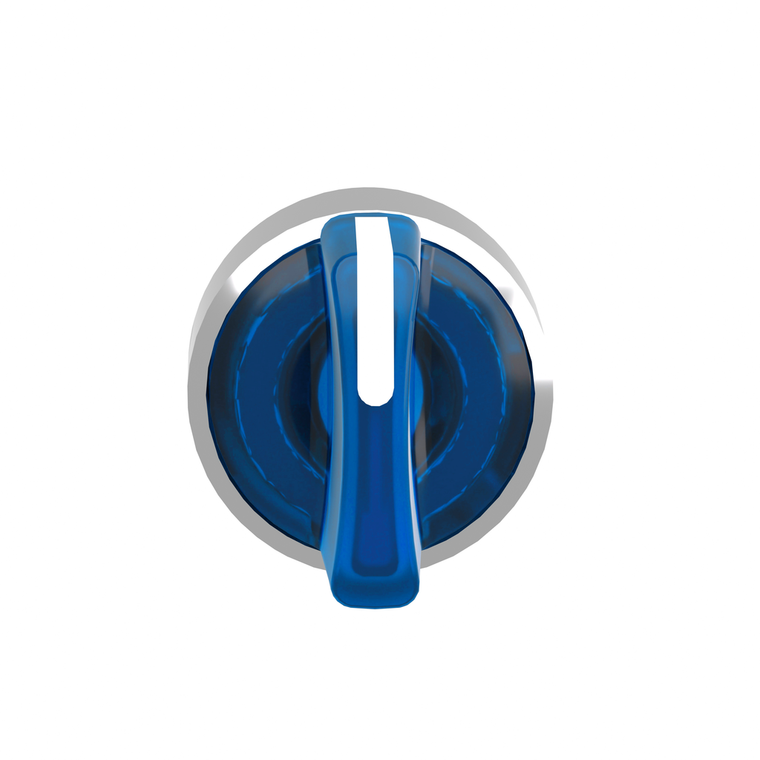

Schneider Electric ZB4BK1363 Selector Ill. Pushbotton

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB4BK1363 Selector Ill. Pushbotton

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB4BK1363

UPC:

3389110890860

MPN:

Condition:

New

Toxic Heavy Metal Free:

Yes

Cad Overall Width:

29 mm

Overvoltage Category:

class I IEC 60536

Sustainable Offer Status:

Green Premium product

Cad Overall Height:

29 mm

Rohs Exemption Information:

Yes

Warranty:

18 months

Ambient Air Temperature For Storage:

-40-70 °C

Circularity Profile:

ENVEOLI1808008EN

Cad Overall Depth:

43 mm

Mounting Diameter:

22 mm

Range Of Product:

Harmony XB4

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Shape Of Signaling Unit Head:

round

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Product Certifications:

LROS (Lloyds register of shipping) || BV || GL || DNV || CSA || UL Listed

Ambient Air Temperature For Operation:

-40-70 °C

Ik Degree Of Protection:

IK04 IEC 50102

Bezel Material:

chromium plated metal

Operator Position Information:

3 positions +/- 45°

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Head Type:

standard

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Mechanical Durability:

500000 cycles

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Product Or Component Type:

head for illuminated selector switch

Protective Treatment:

TH

Device Presentation:

basic element

Operator Profile:

blue standard handle

Reach Free Of Svhc:

Yes

Environmental Disclosure:

ENVPEP1808008EN

Product Compatibility:

universal LED

Electrical Composition Code:

M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || M4 4 single and double front mounting integral LED

Type Of Operator:

stay put

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Device Short Name:

ZB4

Net Weight:

0.036 kg

China Rohs Regulation:

X

Mercury Free:

Yes

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Standards:

JIS C8201-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-5-5 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C8201-1

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Sale Per Indivisible Quantity:

1
