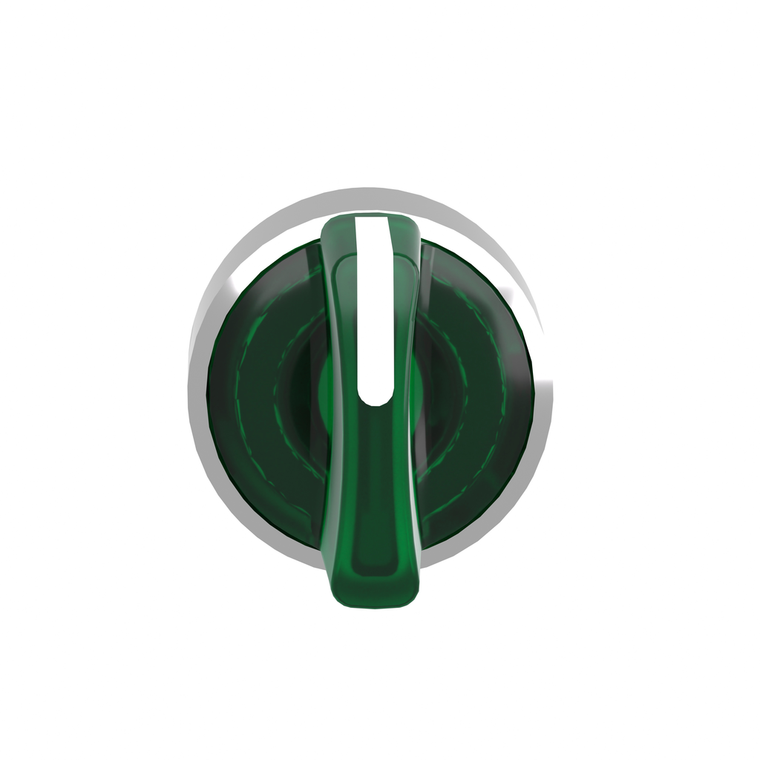

Schneider Electric ZB4BK1733 Selector Ill. Pushbotton
Schneider Electric
$51.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, illuminated green selector switch head for universal LED with standard handle has 3 positions, operates with spring return from left to center mechanism. This illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Toxic Heavy Metal Free:
- Yes
- China Rohs Regulation:
- X
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ik Degree Of Protection:
- IK04 IEC 50102
- Warranty:
- 18 months
- Protective Treatment:
- TH
- Cad Overall Height:
- 29 mm
- Shape Of Signaling Unit Head:
- round
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Net Weight:
- 0.036 kg
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Environmental Disclosure:
- ENVPEP1808008EN
- Mounting Diameter:
- 22 mm
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Device Short Name:
- ZB4
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Ambient Air Temperature For Storage:
- -40-70 °C
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Reach Free Of Svhc:
- Yes
- Mercury Free:
- Yes
- Circularity Profile:
- ENVEOLI1808008EN
- Rohs Exemption Information:
- Yes
- Product Or Component Type:
- head for illuminated selector switch
- Product Compatibility:
- universal LED
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Device Presentation:
- basic element
- Range Of Product:
- Harmony XB4
- Ambient Air Temperature For Operation:
- -40-70 °C
- Cad Overall Width:
- 29 mm
- Electrical Composition Code:
- M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || M4 4 single and double front mounting integral LED
- Sustainable Offer Status:
- Green Premium product
- Overvoltage Category:
- class I IEC 60536
- Standards:
- EN/IEC 60947-5-1 || JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || UL 508 || JIS C8201-1
- Cad Overall Depth:
- 43 mm
- Type Of Operator:
- left to centre spring return
- Head Type:
- standard
- Product Certifications:
- DNV || GL || UL Listed || LROS (Lloyds register of shipping) || CSA || BV
- Mechanical Durability:
- 500000 cycles
- Bezel Material:
- chromium plated metal
- Sale Per Indivisible Quantity:
- 1
- Operator Profile:
- green standard handle
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Operator Position Information:
- 3 positions +/- 45°
