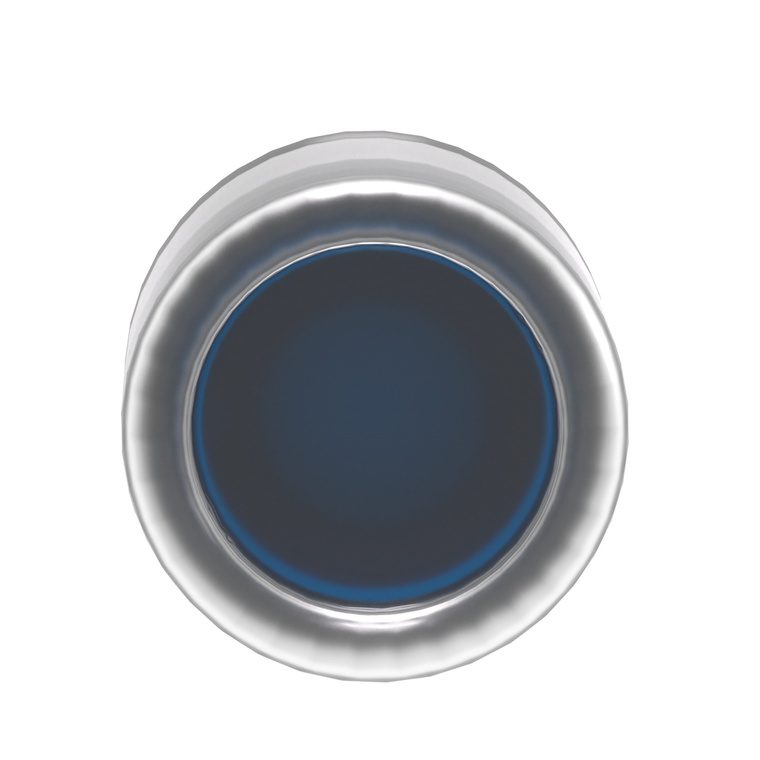

Schneider Electric ZB4BP68 Pushbutton Operator Head
Schneider Electric
$29.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, flush blue button head with clear silicone membrane booted operates with a spring return / impulse mechanism. This clear silicone booted button head provides a simple solution to comply with hygiene requirement in food, beverage industries as well as healthcare and pharmaceuticals. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. The clear boot prevents growth of bacteria in joints and gaps, it makes this product ideal for high hygiene environments.
- Ik Degree Of Protection:
- IK06 IEC 50102
- Device Presentation:
- basic element
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Cad Overall Height:
- 30 mm
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Product Or Component Type:
- head for non-illuminated push-button
- Range Of Product:
- Harmony XB4
- Type Of Operator:
- spring return
- Shape Of Signaling Unit Head:
- round
- Bezel Material:
- chromium plated metal
- Reach Free Of Svhc:
- Yes
- Head Type:
- standard
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Rohs Exemption Information:
- Yes
- Mercury Free:
- Yes
- Warranty:
- 18 months
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Ambient Air Temperature For Storage:
- -40-70 °C
- Device Short Name:
- ZB4
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Environmental Disclosure:
- ENVPEP1808008EN
- Sustainable Offer Status:
- Green Premium product
- Operator Additional Information:
- clear boot for insertion of protected legend within head
- Cad Overall Width:
- 30 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Operator Profile:
- blue flush, unmarked
- Mounting Diameter:
- 22 mm
- Standards:
- JIS C8201-5-1 || CSA C22.2 No 14 || UL 508 || EN/IEC 60947-1 || EN/IEC 60947-5-5 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || JIS C8201-1
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Protective Treatment:
- TH
- Cad Overall Depth:
- 37 mm
- Overvoltage Category:
- class I IEC 60536
- Circularity Profile:
- ENVEOLI1808008EN
- Product Compatibility:
- not compatible with legend holder
- China Rohs Regulation:
- X
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C14 2 single front mounting
- Sale Per Indivisible Quantity:
- 1
- Product Certifications:
- CSA || BV || DNV || UL Listed || LROS (Lloyds register of shipping) || GL
- Toxic Heavy Metal Free:
- Yes
- Ambient Air Temperature For Operation:
- -40-70 °C
- Mechanical Durability:
- 10000000 cycles
