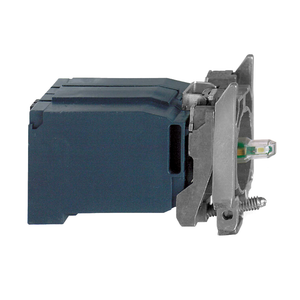

Schneider Electric ZB4BV5D3 400 V Led Transfo Light B

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB4BV5D3 400 V Led Transfo Light B

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB4BV5D3

UPC:

3.38911E+12

MPN:

Condition:

New

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end

Cad Overall Width:

30 mm

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27

Range Of Product:

Harmony XB4

Product Or Component Type:

complete body/light block assembly

Ambient Air Temperature For Storage:

-40-70 °C

Light Block Supply:

via integral transformer 1.2 VA 6 V

Protective Treatment:

TH

Light Source Colour:

green

Warranty:

18 months

Light Source:

LED

[Us] Rated Supply Voltage:

400 V AC 50/60 Hz

Device Short Name:

ZB4

Cad Overall Depth:

60 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product Certifications:

BV || UL Listed || LROS (Lloyds register of shipping) || CSA || GL || DNV

Cad Overall Height:

47 mm

Environmental Disclosure:

ENVPEP1808008EN

Mounting Of Block:

front mounting

Rohs Exemption Information:

Yes

China Rohs Regulation:

X

Circularity Profile:

ENVEOLI1808008EN

Ambient Air Temperature For Operation:

-40-70 °C

Bulb Base:

BA 9s

Mercury Free:

Yes

Electrical Shock Protection Class:

class I IEC 60536

Terminals Description Iso N°1:

(X1-X2)PL

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Fixing Collar Material:

zamak

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Sustainable Offer Status:

Green Premium product

Signalling Type:

steady

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Shape Of Screw Head:

cross Philips no 1

Ip Degree Of Protection:

IP20

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Electrical Composition Code:

P4

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Standards:

IEC 60947-5-5 || IEC 60947-5-1 || IEC 60947-5-4 || JIS C8201-5-1 || UL 508 || IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-1

Sale Per Indivisible Quantity:

1

Net Weight:

0.134 kg

Catalog:

View

Datasheet:

View
