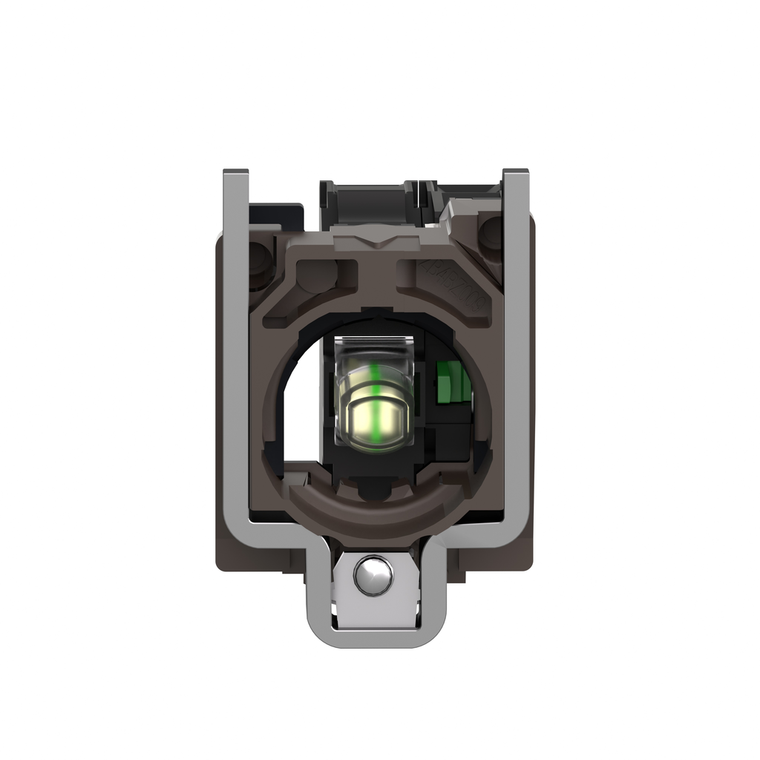

Schneider Electric ZB4BW0B11 24 V Led Illumi. P.B Bod

Schneider Electric ZB4BW0B11 24 V Led Illumi. P.B Bod

Schneider Electric
SKU:
ZB4BW0B11
|
UPC:
3389110893083
$73.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony XB4, light block with body/fixing collar is white, operates with a universal LED. It has 1 x NO contact and a metal body and is compatible with Harmony XB4 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by universal LED. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 55°C allows versatility in usage of product.
Additional Information
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Positive Opening:
without
Environmental Disclosure:
ENVPEP1808008EN
[Us] Rated Supply Voltage:
24 V AC/DC 50/60 Hz
Operating Torque:
0.05 N.m NO changing electrical state
Resistance To Electrostatic Discharge:
6 kV on contact (on metal parts) IEC 61000-2-6 || 8 kV in free air (in insulating parts) IEC 61000-2-6
Mercury Free:
Yes
Mechanical Durability:
5000000 cycles
China Rohs Regulation:
X
Product Or Component Type:
complete body/contact assembly and light block
Circularity Profile:
ENVEOLI1808008EN
Contact Operation:
slow-break
Light Block Supply:
direct
Cad Overall Height:
47 mm
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Operating Travel:
2.6 mm NO changing electrical state) || 4.3 mm total travel)
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Range Of Product:
Harmony XB4
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Operating Force:
2.3 N NO changing electrical state
Signalling Type:
steady
Rohs Exemption Information:
Yes
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Electrical Reliability:
λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Head Type:
standard
Product Certifications:
BV || GL || CSA || DNV || UL Listed || LROS (Lloyds register of shipping)
Supply Voltage Limits:
19.2-30 V DC || 21.6-26.4 V AC
Terminals Description Iso N°1:
(13-14)NO
Light Source Colour:
white
Fixing Collar Material:
zamak
Cad Overall Width:
30 mm
Sustainable Offer Status:
Green Premium product
Protective Treatment:
TH
Service Life:
100000 h at rated voltage and 25 °C
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Device Presentation:
basic sub-assemblies
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Ambient Air Temperature For Storage:
-40-70 °C
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
Contacts Type And Composition:
1 NO
Standards:
IEC 60947-5-5 || IEC 60947-1 || CSA C22.2 No 14 || IEC 60947-5-1 || UL 508 || IEC 60947-5-4 || JIS C8201-5-1 || JIS C8201-1
Current Consumption:
18 mA
Electromagnetic Emission:
class B IEC 55011
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Contacts Material:
silver alloy (Ag/Ni)
Warranty:
18 months
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Net Weight:
0.064 kg
Ambient Air Temperature For Operation:
-40-70 °C
Bulb Base:
integral LED
Resistance To Electromagnetic Fields:
10 V/m IEC 61000-4-3
Sale Per Indivisible Quantity:
1
Resistance To Fast Transients:
2 kV IEC 61000-4-4
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Surge Withstand:
1 kV IEC 61000-4-5
Light Source:
universal LED
Contacts Usage:
standard
Device Short Name:
ZB4
Electrical Shock Protection Class:
class I IEC 60536
