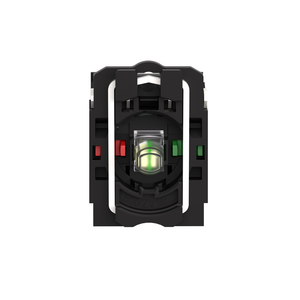

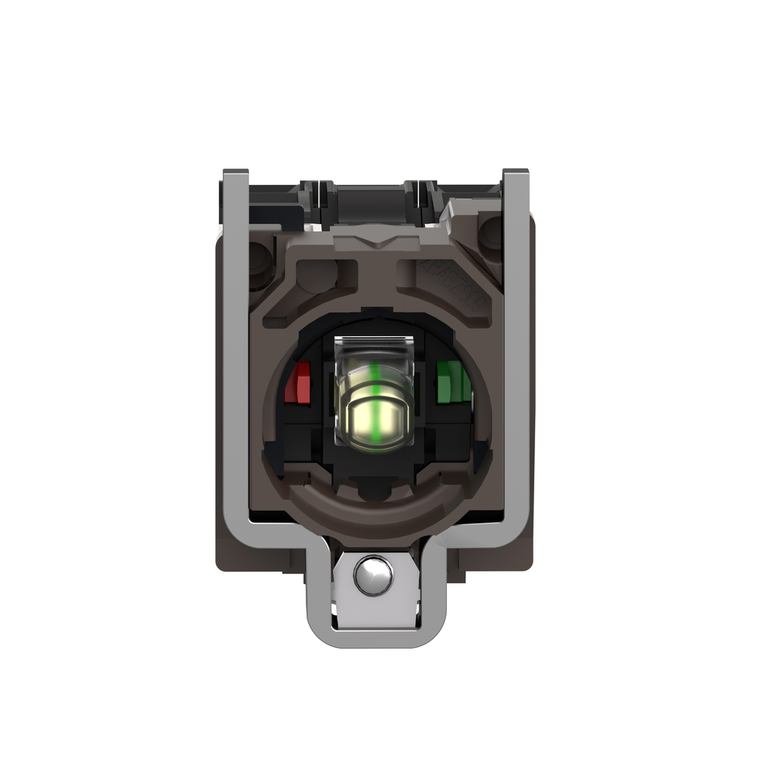

Schneider Electric ZB4BW0B15 24 V Led Illumi. P.B Bod

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB4BW0B15 24 V Led Illumi. P.B Bod

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB4BW0B15

UPC:

3389110893113

MPN:

Condition:

New

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Contacts Type And Composition:

1 NO + 1 NC

Ambient Air Temperature For Storage:

-40-70 °C

Electrical Shock Protection Class:

class I IEC 60536

Light Source:

universal LED

Range Of Product:

Harmony XB4

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Service Life:

100000 h at rated voltage and 25 °C

Signalling Type:

steady

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1

Electrical Reliability:

λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Current Consumption:

18 mA

Operating Force:

2 N NC changing electrical state || 2.3 N NO changing electrical state

Light Source Colour:

white

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Terminals Description Iso N°1:

(11-12)NC

Sale Per Indivisible Quantity:

1

Circularity Profile:

ENVEOLI1808008EN

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Cad Overall Width:

30 mm

Fixing Collar Material:

zamak

Electromagnetic Emission:

class B IEC 55011

Bulb Base:

integral LED

Mercury Free:

Yes

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-2-6 || 8 kV in free air (in insulating parts) IEC 61000-2-6

Contacts Material:

silver alloy (Ag/Ni)

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Contacts Usage:

standard

Warranty:

18 months

China Rohs Regulation:

X

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Rohs Exemption Information:

Yes

Net Weight:

0.074 kg

Sustainable Offer Status:

Green Premium product

Protective Treatment:

TH

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Operating Torque:

0.05 N.m NO changing electrical state

Contact Operation:

slow-break

[Us] Rated Supply Voltage:

24 V AC/DC 50/60 Hz

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Cad Overall Height:

47 mm

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

Device Short Name:

ZB4

Ambient Air Temperature For Operation:

-40-70 °C

Supply Voltage Limits:

19.2-30 V DC || 21.6-26.4 V AC

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Head Type:

standard

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Light Block Supply:

direct

Product Or Component Type:

complete body/contact assembly and light block

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Surge Withstand:

1 kV IEC 61000-4-5

Product Certifications:

LROS (Lloyds register of shipping) || BV || UL Listed || CSA || GL || DNV

Mechanical Durability:

5000000 cycles

Positive Opening:

with IEC 60947-5-1 appendix K

Standards:

JIS C8201-5-1 || IEC 60947-1 || CSA C22.2 No 14 || IEC 60947-5-5 || IEC 60947-5-1 || IEC 60947-5-4 || UL 508 || JIS C8201-1

Environmental Disclosure:

ENVPEP1808008EN

Device Presentation:

basic sub-assemblies

Operating Travel:

1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
