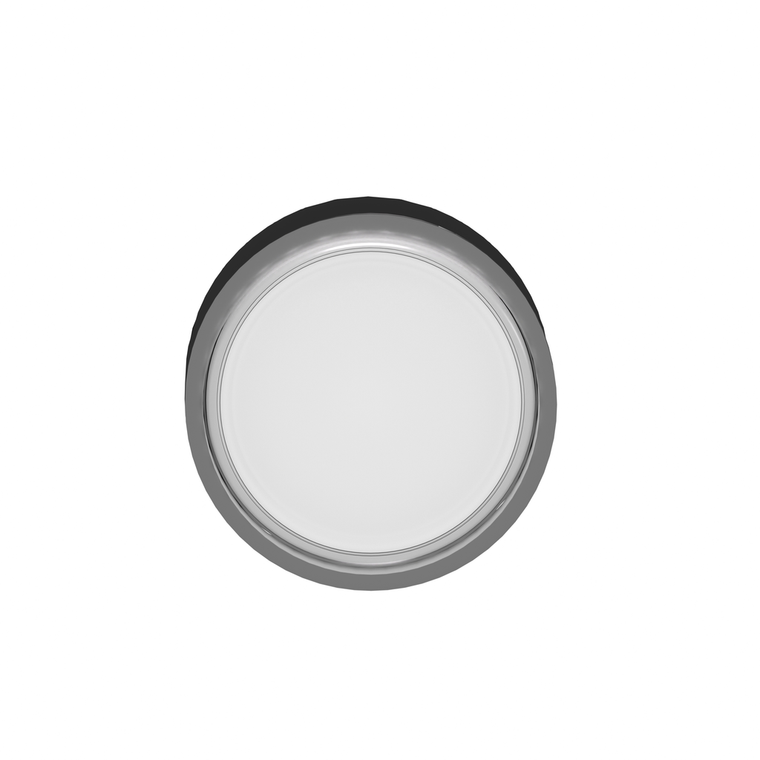

Schneider Electric ZB4BW3137 Illuminated Pushbutton He

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB4BW3137 Illuminated Pushbutton He

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB4BW3137

UPC:

3389110840056

MPN:

Condition:

New

Environmental Disclosure:

ENVPEP1808008EN

Toxic Heavy Metal Free:

Yes

Type Of Operator:

spring return

Range Of Product:

Harmony XB4

Protective Treatment:

TH

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Cad Overall Width:

29 mm

Reach Free Of Svhc:

Yes

Circularity Profile:

ENVEOLI1808008EN

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Shape Of Signaling Unit Head:

round

Net Weight:

0.026 kg

Product Certifications:

DNV || GL || BV || LROS (Lloyds register of shipping) || UL Listed || CSA

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Sustainable Offer Status:

Green Premium product

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Mechanical Durability:

10000000 cycles

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Operator Additional Information:

with plain lens

Warranty:

18 months

Ambient Air Temperature For Storage:

-40-70 °C

Cad Overall Height:

29 mm

Mercury Free:

Yes

Cad Overall Depth:

30 mm

China Rohs Regulation:

X

Operator Profile:

white flush, unmarked

Product Or Component Type:

head for illuminated push-button

Electrical Composition Code:

M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED

Sale Per Indivisible Quantity:

1

Bezel Material:

black metal

Product Compatibility:

integral LED

Head Type:

standard

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Standards:

JIS C8201-5-1 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-5 || UL 508 || JIS C8201-1

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Overvoltage Category:

class I IEC 60536

Device Presentation:

basic sub-assemblies

Device Short Name:

ZB4

Ambient Air Temperature For Operation:

-40-70 °C

Mounting Diameter:

22 mm

Rohs Exemption Information:

Yes

Ik Degree Of Protection:

IK06 EN 50102

Datasheet:

View
