Schneider Electric ZB4BW34 Illuminated Pushbutton He

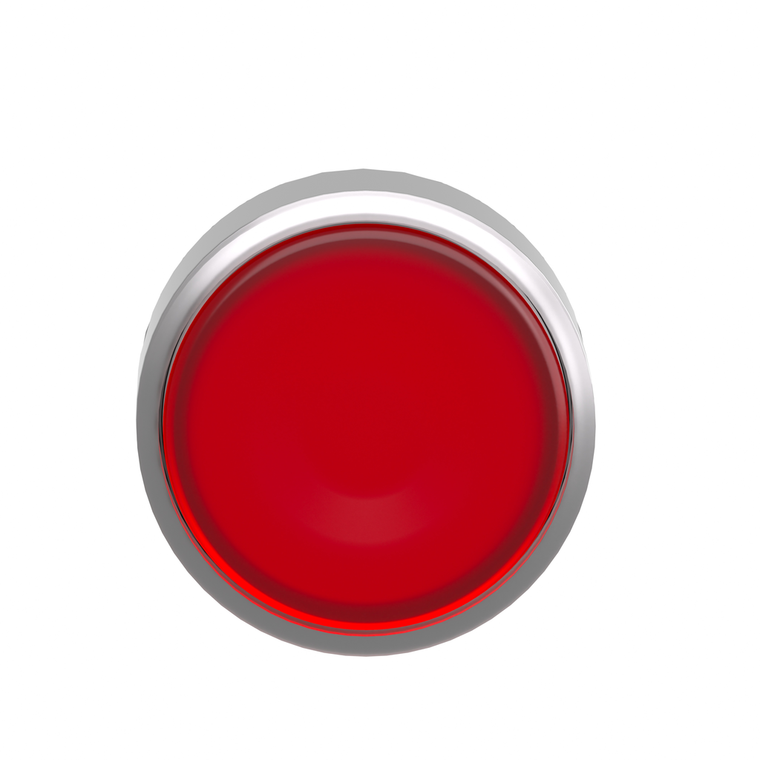

This Harmony XB4, plain lens illuminated flush red button head operates with a spring return / impulse mechanism. This illuminated button head for BA9s Integral LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
- Toxic Heavy Metal Free:
- Yes
- Device Presentation:
- basic sub-assemblies
- Protective Treatment:
- TH
- Electrical Composition Code:
- M7 6 single front mounting BA 9s || M8 6 single and double front mounting BA 9s || M9 2 single front mounting BA 9s and transformer
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Sale Per Indivisible Quantity:
- 1
- Warranty:
- 18 months
- Type Of Operator:
- spring return
- Operator Profile:
- red flush, unmarked
- Ambient Air Temperature For Storage:
- -40-70 °C
- Product Compatibility:
- BA 9s
- Overvoltage Category:
- class I IEC 60536
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Circularity Profile:
- ENVEOLI1808008EN
- Rohs Exemption Information:
- Yes
- Device Short Name:
- ZB4
- Ik Degree Of Protection:
- IK06 IEC 62262
- China Rohs Regulation:
- X
- Bezel Material:
- chromium plated metal
- Mechanical Durability:
- 10000000 cycles
- Cad Overall Depth:
- 32 mm
- Cad Overall Width:
- 29 mm
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Standards:
- UL 508 || IEC 60947-5-4 || JIS C8201-5-1 || IEC 60947-5-1 || IEC 60947-1 || CSA C22.2 No 14 || IEC 60947-5-5 || JIS C8201-1
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Operator Additional Information:
- with plain lens
- Head Type:
- standard
- Product Or Component Type:
- head for illuminated push-button
- Mercury Free:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Cad Overall Height:
- 29 mm
- Net Weight:
- 0.027 kg
- Environmental Disclosure:
- ENVPEP1808008EN
- Reach Free Of Svhc:
- Yes
- Mounting Diameter:
- 22 mm
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Range Of Product:
- Harmony XB4
- Ambient Air Temperature For Operation:
- -40-55 °C
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Shape Of Signaling Unit Head:
- round
- Product Certifications:
- BV || DNV || LROS (Lloyds register of shipping) || UL Listed || GL || CSA
