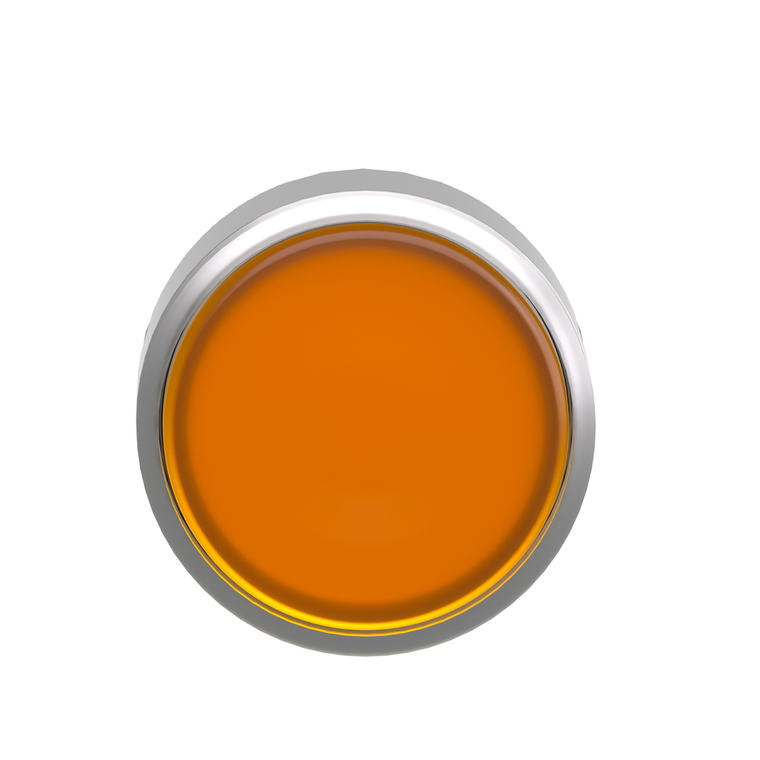

Schneider Electric ZB4BW35 Illuminated Pushbutton He

Schneider Electric ZB4BW35 Illuminated Pushbutton He

Schneider Electric
SKU:
ZB4BW35
|
UPC:
3389110889727
Availability:
Contact us to confirm availability and lead times.
$18.60
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony XB4, plain lens illuminated flush orange button head operates with a spring return / impulse mechanism. This illuminated button head for BA9s Integral LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
Additional Information
Bezel Material:
chromium plated metal
Product Compatibility:
BA 9s
Ambient Air Temperature For Storage:
-40-70 °C
Mounting Diameter:
22 mm
Ik Degree Of Protection:
IK06 IEC 62262
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Sustainable Offer Status:
Green Premium product
Rohs Exemption Information:
Yes
Cad Overall Height:
29 mm
Operator Profile:
orange flush, unmarked
China Rohs Regulation:
X
Net Weight:
0.027 kg
Reach Free Of Svhc:
Yes
Mechanical Durability:
10000000 cycles
Device Presentation:
basic sub-assemblies
Shape Of Signaling Unit Head:
round
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Warranty:
18 months
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Standards:
JIS C8201-5-1 || IEC 60947-1 || IEC 60947-5-5 || IEC 60947-5-4 || UL 508 || CSA C22.2 No 14 || IEC 60947-5-1 || JIS C8201-1
Electrical Composition Code:
M7 6 single front mounting BA 9s || M8 6 single and double front mounting BA 9s || M9 2 single front mounting BA 9s and transformer
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation:
-40-55 °C
Type Of Operator:
spring return
Mercury Free:
Yes
Circularity Profile:
ENVEOLI1808008EN
Cad Overall Width:
29 mm
Product Or Component Type:
head for illuminated push-button
Device Short Name:
ZB4
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 || IP69 || IP69K
Range Of Product:
Harmony XB4
Toxic Heavy Metal Free:
Yes
Head Type:
standard
Product Certifications:
GL || DNV || UL Listed || LROS (Lloyds register of shipping) || BV || CSA
Cad Overall Depth:
32 mm
Sale Per Indivisible Quantity:
1
Operator Additional Information:
with plain lens
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Overvoltage Category:
class I IEC 60536
Protective Treatment:
TH
Environmental Disclosure:
ENVPEP1808008EN
