Schneider Electric ZB4BW7A3741 Metal Double Headed Pushbuttons With Pil

Schneider Electric ZB4BW7A3741 Metal Double Headed Pushbuttons With Pil

Schneider Electric
SKU:
ZB4BW7A3741
|
UPC:
3389119043755
Availability:
Contact us to confirm availability and lead times.
$52.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

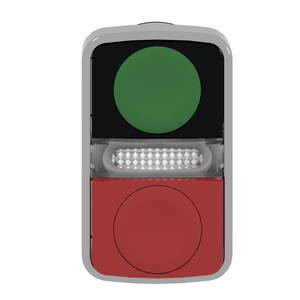

This Harmony XB4, illuminated double head has 1 green, 1 red button and 1 central white pilot light, operates with a spring return / impulse mechanism. It is marked with "I" and "O"symbols. This double head provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its pilot light and illuminated head with clear colors, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. it is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
Additional Information
Sale Per Indivisible Quantity:
1
Cad Overall Depth:
30 mm
Electrical Shock Protection Class:
class I IEC 61140
Head Type:
standard
Colour Of Marking:
black marking when white caps || white marking when green, red or black caps
China Rohs Regulation:
X
Mercury Free:
Yes
Reach Free Of Svhc:
Yes
Bezel Material:
chromium plated metal
Warranty:
18 months
Mechanical Durability:
1000000 cycles
Range Of Product:
Harmony XB4
Device Presentation:
basic sub-assemblies
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Ambient Air Temperature For Operation:
-40-70 °C
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Circularity Profile:
ENVEOLI1808008EN
Operators Description:
green ''I'' - red ''O''
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 IEC 60529 || IP69 || IP69K
Toxic Heavy Metal Free:
Yes
Rohs Exemption Information:
Yes
Mounting Diameter:
22 mm
Ik Degree Of Protection:
IK06 IEC 50102
Cad Overall Width:
30 mm
Operator Profile:
green flush, I white) || red flush, O white)
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Shape Of Signaling Unit Head:
rectangular
Product Or Component Type:
head for illuminated double-headed push-button
Protective Treatment:
TH
Operator Profile:
2 flush push-buttons - 1 central pilot light
Sustainable Offer Status:
Green Premium product
Product Compatibility:
integral LED
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Standards:
JIS C8201-5-1 || UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-5 || JIS C8201-1
Cad Overall Height:
50 mm
Type Of Operator:
spring return
Ambient Air Temperature For Storage:
-40-70 °C
Environmental Disclosure:
ENVPEP1808008EN
Device Short Name:
ZB4
Electrical Composition Code:
M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Product Certifications:
UL Listed || DNV || LROS (Lloyds register of shipping) || CSA || BV || GL
Net Weight:
0.056 kg
