Schneider Electric ZB4BW7L3741 Metal Double Headed Pushbuttons With Pil

Schneider Electric ZB4BW7L3741 Metal Double Headed Pushbuttons With Pil

Schneider Electric
SKU:
ZB4BW7L3741
|
UPC:
3389119043779
Availability:
Contact us to confirm availability and lead times.
$52.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

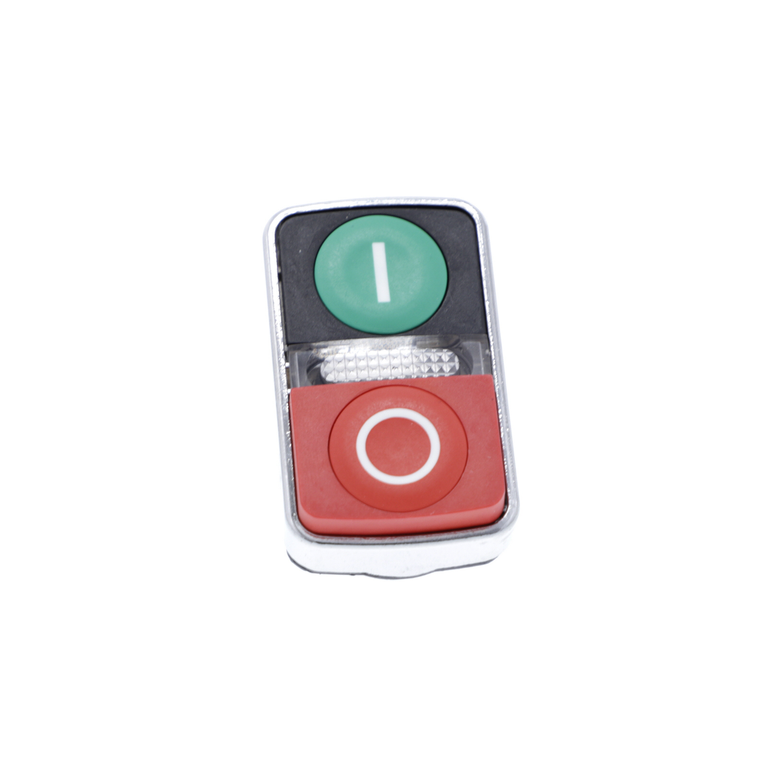

This Harmony XB4, double head has 1 red, 1 green button and 1 central white pilot light, operates with a spring return mechanism. It is marked with "I" and "O" symbols. This double-head button provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear colors and by touch due to flush and projecting elements, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. it is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Additional Information
Electrical Composition Code:
M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
Shape Of Signaling Unit Head:
rectangular
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Operators Description:
green ''I'' - red ''O''
Bezel Material:
chromium plated metal
Circularity Profile:
ENVEOLI1808008EN
Ambient Air Temperature For Storage:
-40-70 °C
Rohs Exemption Information:
Yes
Product Certifications:
UL Listed || DNV || BV || LROS (Lloyds register of shipping) || GL || CSA
China Rohs Regulation:
X
Operator Profile:
1 flush - 1 projecting push-buttons - 1 central pilot light
Sustainable Offer Status:
Green Premium product
Mercury Free:
Yes
Standards:
IEC 60947-5-5 || UL 508 || CSA C22.2 No 14 || IEC 60947-5-4 || JIS C8201-5-1 || IEC 60947-5-1 || IEC 60947-1 || JIS C8201-1
Product Or Component Type:
head for illuminated double-headed push-button
Reach Free Of Svhc:
Yes
Device Short Name:
ZB4
Sale Per Indivisible Quantity:
1
Toxic Heavy Metal Free:
Yes
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Device Presentation:
basic sub-assemblies
Range Of Product:
Harmony XB4
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Cad Overall Depth:
30 mm
Colour Of Marking:
white marking when green, red or black caps || black marking when white caps
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Protective Treatment:
TH
Mounting Diameter:
22 mm
Net Weight:
0.056 kg
Ip Degree Of Protection:
IP66 IEC 60529 || IP69K || IP69 IEC 60529
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Head Type:
standard
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Warranty:
18 months
Product Compatibility:
integral LED
Cad Overall Width:
30 mm
Operator Profile:
green flush, I white) || red projecting, O white)
Type Of Operator:
spring return
Environmental Disclosure:
ENVPEP1808008EN
Cad Overall Height:
50 mm
Ik Degree Of Protection:
IK06 IEC 50102
Ambient Air Temperature For Operation:
-40-70 °C
Electrical Shock Protection Class:
class I IEC 61140
Mechanical Durability:
1000000 cycles
