Schneider Electric ZB4BZ1015 Complete Body With 1 No Spring Terminal

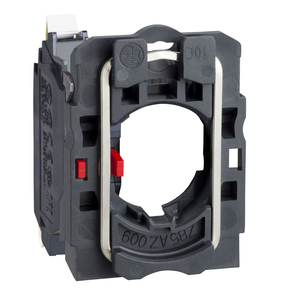

This Harmony XB4, single contact block is pre-assembled on a body/collar fixing unit. It is compatible with Harmony XB4 This body fixing collar is pre-mounted with a contact block. Simply adding a head to this assembly will provide you with a complete ready-to-use push button. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance provides less maintenance and damage in your installation. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Contact Operation:
- slow-break
- Electrical Durability:
- 10000000 cycles
- Connections - Terminals:
- spring clamp terminals
- Reach Free Of Svhc:
- Yes
- Contact Block Type:
- single
- Device Composition:
- fixing collar || body
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information:
- Yes
- Fixing Collar Material:
- zamak
- Ip Degree Of Protection:
- IP20 IEC 60529
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
- Cad Overall Height:
- 27.6 mm
- Operating Travel:
- 2.6 mm NO changing electrical state)
- Mercury Free:
- Yes
- Contacts Usage:
- standard contacts
- Contacts Material:
- silver alloy (Ag/Ni)
- Device Presentation:
- basic sub-assemblies
- Device Short Name:
- ZB4
- Product Certifications:
- CSA || BV || GL || UL || LROS (Lloyds register of shipping) || DNV
- Standards:
- IEC 60947-5-4 || IEC 60947-1 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-5 || UL 508 || JIS C8201-5-1 || JIS C8201-1
- Ambient Air Temperature For Storage:
- -40-70 °C
- Cad Overall Depth:
- 30 mm
- Mechanical Durability:
- 10000000 cycles
- Sale Per Indivisible Quantity:
- 1
- China Rohs Regulation:
- X
- Operating Force:
- 2.3 N NO changing electrical state
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Head Type:
- standard
- Net Weight:
- 0.049 kg
- Circularity Profile:
- ENVEOLI1808008EN
- Sustainable Offer Status:
- Green Premium product
- Cad Overall Width:
- 46.2 mm
- Warranty:
- 18 months
- Ambient Air Temperature For Operation:
- -40-70 °C
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Product Or Component Type:
- complete body/contact assembly
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Environmental Disclosure:
- ENVPEP1808008EN
- Toxic Heavy Metal Free:
- Yes
- Range Of Product:
- Harmony XB4
- Operating Torque:
- 0.05 N.m NO changing electrical state
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Protective Treatment:
- TH
- Terminals Description Iso N°1:
- (13-14)NO
- Contacts Type And Composition:
- 1 NO
- Positive Opening:
- without
