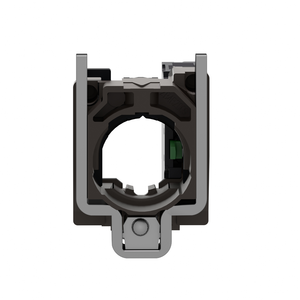

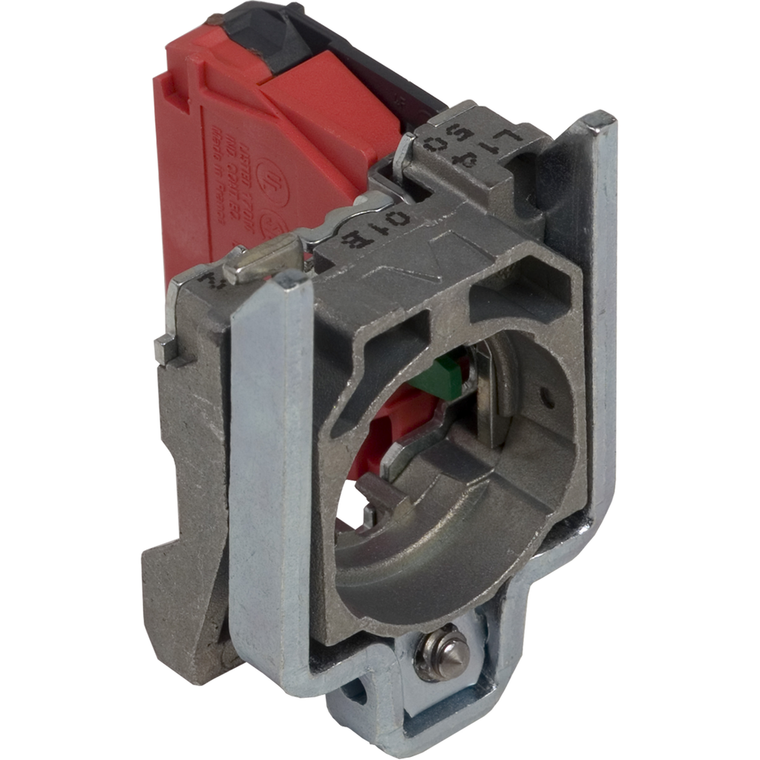

Schneider Electric ZB4BZ1016 Fixing Collar 1No Low Power Contact
SKU:
ZB4BZ1016
UPC:
3606480502378
MPN:
Condition:
New
Operating Torque:
0.05 N.m NO changing electrical state
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury Free:
Yes
Head Type:
standard
Cad Overall Height:
47 mm
Standards:
UL 508 || JIS C8201-5-1 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-4 || IEC 60947-1 || IEC 60947-5-5 || JIS C8201-1
Contacts Material:
gold flashed (Ag/Ni/Au) contacts
Contact Block Type:
single
Range Of Product:
Harmony XB4
[Ui] Rated Insulation Voltage:
250 V 3)IEC 60947-1
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Fixing Collar Material:
zamak
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Electrical Durability:
1000000 cycles, AC-15, 1 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 1.5 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13
Environmental Disclosure:
ENVPEP1808008EN
Mechanical Durability:
5000000 cycles
Electrical Reliability:
λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
Sale Per Indivisible Quantity:
1
Ip Degree Of Protection:
IP20 IEC 60529
Cad Overall Depth:
37 mm
Contacts Usage:
standard contacts
Contacts Type And Composition:
1 NO
Device Composition:
contact block || fixing collar
Ambient Air Temperature For Operation:
-25-70 °C
Ambient Air Temperature For Storage:
-40-70 °C
Cad Overall Width:
30 mm
Protective Treatment:
TH
Product Or Component Type:
complete body/contact assembly
Net Weight:
0.064 kg
Sustainable Offer Status:
Green Premium product
Terminals Description Iso N°1:
(11-12)NO
Rohs Exemption Information:
Yes
China Rohs Regulation:
X
Toxic Heavy Metal Free:
Yes
Circularity Profile:
ENVEOLI1808008EN
Product Certifications:
DNV || UL || CSA || LROS (Lloyds register of shipping) || GL || BV
[Uimp] Rated Impulse Withstand Voltage:
4 kV IEC 60947-1
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A300 IEC 60947-5-1 || 6 A 120 V, AC-15, A300 IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Warranty:
18 months
Short-Circuit Protection:
4 A cartridge fuse gG IEC 60947-5-1
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Contact Operation:
slow-break
Reach Free Of Svhc:
Yes
Positive Opening:
with IEC 60947-5-1 appendix K
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Operating Travel:
1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
