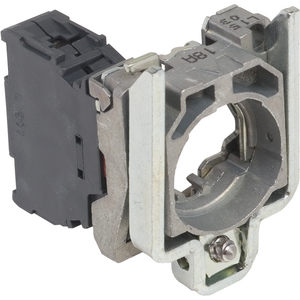

Schneider Electric ZB4BZ1026 Fixing Collar 1Nc Low Power Contact
Schneider Electric
$38.20
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
XB4/ZB4 22mm push buttons are for industrial applications. XB4/ZB4 operators have chromium plated metal bezels that connect to a fully metal mounting collar. This normally closed contact is monted on a metal mounting collar. Contacts have UL A600, UL Q300, IEC AC15 and IEC DC13 contact ratings. Contacts have spring clamp terminals. Contact block assembly is 1.85 inches tall, 1.18 inches wide and 1.46 inches deep. Selector switch weighs 0.14 lbs. Contact block assembly is UL Listed and CSA certified. "This product meets JIS C8201-5-1, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-5, EN/IEC 60947-5-4, UL 508 and JIS C8201-1 standards." "Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines and processes." "The modular range of 22mm metal control and signaling units combine simplicity of installation, modern standard and flush mounted design."
- Toxic Heavy Metal Free:
- Yes
- Terminals Description Iso N°1:
- (11-12)NC
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Protective Treatment:
- TH
- Contacts Type And Composition:
- 1 NC
- Rohs Exemption Information:
- Yes
- Operating Torque:
- 0.05 N.m NO changing electrical state
- Device Composition:
- contact block || fixing collar
- Cad Overall Height:
- 47 mm
- Contact Block Type:
- single
- Product Or Component Type:
- complete body/contact assembly
- Sustainable Offer Status:
- Green Premium product
- [Ie] Rated Operational Current:
- 3 A 240 V, AC-15, A300 IEC 60947-5-1 || 6 A 120 V, AC-15, A300 IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
- Contacts Material:
- gold flashed (Ag/Ni/Au) contacts
- Environmental Disclosure:
- ENVPEP1808008EN
- China Rohs Regulation:
- X
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV IEC 60947-1
- Warranty:
- 18 months
- [Ith] Conventional Free Air Thermal Current:
- 10 A IEC 60947-5-1
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- [Ui] Rated Insulation Voltage:
- 250 V 3)IEC 60947-1
- Ambient Air Temperature For Storage:
- -40-70 °C
- Ip Degree Of Protection:
- IP20 IEC 60529
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Range Of Product:
- Harmony XB4
- Positive Opening:
- with IEC 60947-5-1 appendix K
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Head Type:
- standard
- Product Certifications:
- UL || GL || DNV || CSA || LROS (Lloyds register of shipping) || BV
- Cad Overall Width:
- 30 mm
- Mechanical Durability:
- 5000000 cycles
- Contact Operation:
- slow-break
- Cad Overall Depth:
- 37 mm
- Operating Travel:
- 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
- Circularity Profile:
- ENVEOLI1808008EN
- Sale Per Indivisible Quantity:
- 1
- Short-Circuit Protection:
- 4 A cartridge fuse gG IEC 60947-5-1
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Net Weight:
- 0.064 kg
- Electrical Reliability:
- λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
- Reach Free Of Svhc:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Standards:
- IEC 60947-5-5 || UL 508 || IEC 60947-5-1 || JIS C8201-5-1 || IEC 60947-1 || CSA C22.2 No 14 || IEC 60947-5-4 || JIS C8201-1
- Ambient Air Temperature For Operation:
- -25-70 °C
- Fixing Collar Material:
- zamak
- Mercury Free:
- Yes
- Contacts Usage:
- standard contacts
- Electrical Durability:
- 1000000 cycles, AC-15, 1 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 1.5 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13
- Device Short Name:
- ZB4
