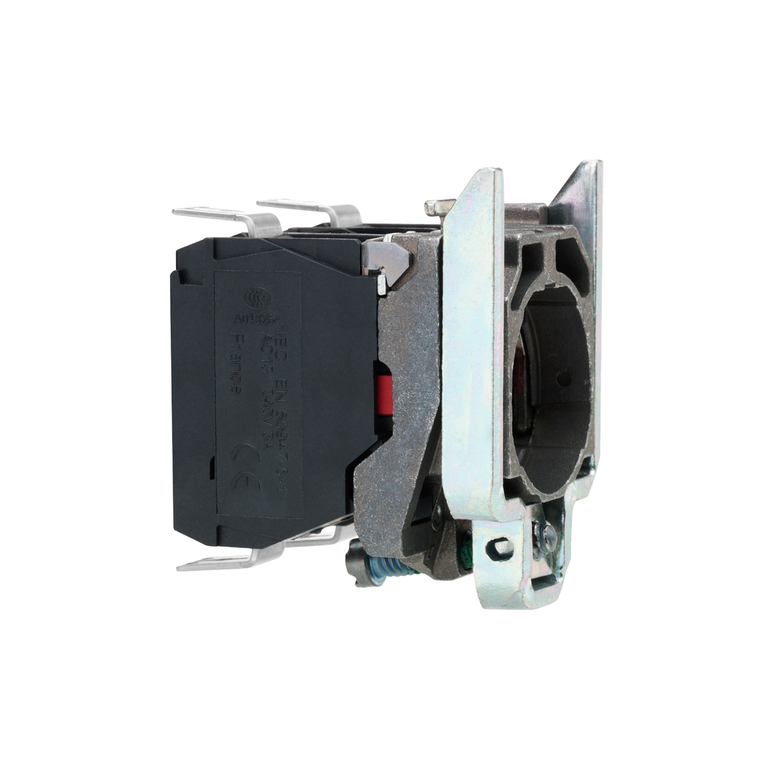

Schneider Electric ZB4BZ1033 Body + 2 No Contacts
Schneider Electric
$57.30
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Harmony complete body/contact, body for push buttons or selector switches, XB6, single contact block with body/fixing collar 2 NO faston connector
- Rohs Exemption Information:
- Yes
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Contacts Material:
- silver alloy (Ag/Ni)
- Fixing Collar Material:
- zamak
- Device Composition:
- fixing collar || body
- Product Certifications:
- LROS (Lloyds register of shipping) || DNV || GL || BV || CSA || UL
- Operating Travel:
- 2.6 mm NO changing electrical state) || 4.3 mm total travel)
- Product Or Component Type:
- complete body/contact assembly
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Net Weight:
- 0.062 kg
- Standards:
- UL 508 || EN/IEC 60947-5-4 || JIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-5 || JIS C8201-1
- Operating Torque:
- 0.05 N.m NO changing electrical state
- Positive Opening:
- without
- Electrical Durability:
- 10000000 cycles
- Ip Degree Of Protection:
- IP20 IEC 60529
- Toxic Heavy Metal Free:
- Yes
- [Ui] Rated Insulation Voltage:
- 250 V 3)EN 60947-1
- Environmental Disclosure:
- ENVPEP1808008EN
- China Rohs Regulation:
- X
- Terminals Description Iso N°1:
- (13-14)NO
- Device Short Name:
- ZB4
- Electrical Reliability:
- λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Sale Per Indivisible Quantity:
- 1
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Cad Overall Height:
- 47 mm
- Mechanical Durability:
- 5000000 cycles
- Warranty:
- 18 months
- Contacts Usage:
- standard contacts
- Head Type:
- standard
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Range Of Product:
- Harmony XB4
- Cad Overall Width:
- 30 mm
- Reach Free Of Svhc:
- Yes
- Contact Operation:
- slow-break
- Cad Overall Depth:
- 37 mm
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Circularity Profile:
- ENVEOLI1808008EN
- Contacts Type And Composition:
- 2 NO
- Connections - Terminals:
- Faston connector 1 x 6.35 mm || Faston connector 2 x 2.8 mm
- Protective Treatment:
- TH
- Sustainable Offer Status:
- Green Premium product
- Contact Block Type:
- single
- Mercury Free:
- Yes
- Ambient Air Temperature For Storage:
- -40-70 °C
- Ambient Air Temperature For Operation:
- -40-70 °C
