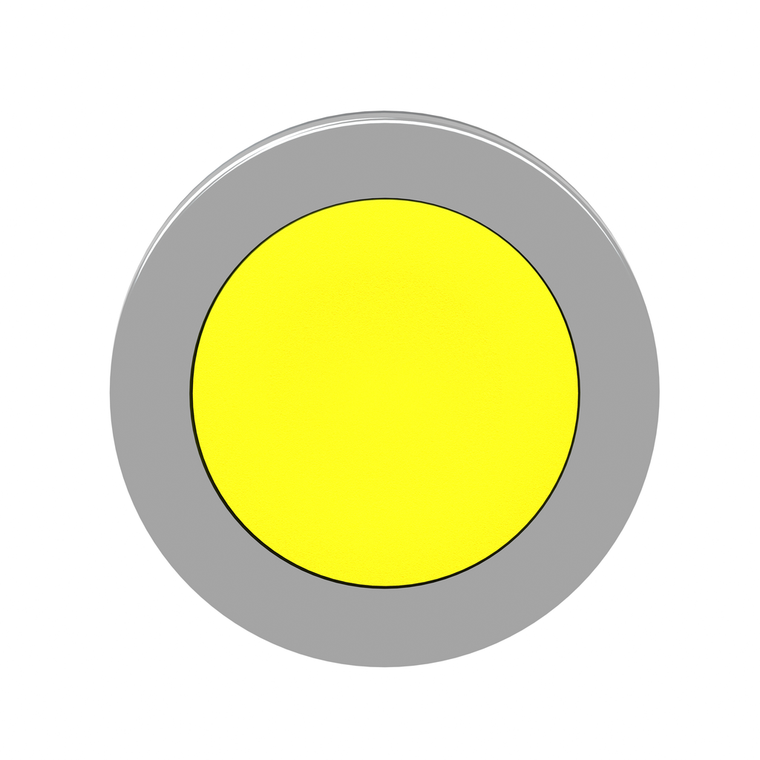

Schneider Electric ZB4FA5 Flush Yw Caps Pb Head
Schneider Electric
$13.30
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB4FA5 Flush Yw Caps Pb Head
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
- Type Of Operator:
- spring return
- Device Presentation:
- basic element
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E
- Mercury Free:
- Yes
- Standards:
- CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-5-4 || UL 508 || IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
- Shape Of Signaling Unit Head:
- round
- Product Or Component Type:
- head for non-illuminated push-button
- Mechanical Durability:
- 10000000 cycles
- Ambient Air Temperature For Operation:
- -40-70 °C
- Mounting Diameter:
- 30.5 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Cad Overall Height:
- 36.6 mm
- Cad Overall Width:
- 36.6 mm
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Sale Per Indivisible Quantity:
- 1
- Device Short Name:
- ZB4F
- China Rohs Regulation:
- X
- Bezel Material:
- chromium plated metal
- Protective Treatment:
- TH
- Toxic Heavy Metal Free:
- Yes
- Ik Degree Of Protection:
- IK06 IEC 50102
- Overvoltage Category:
- class I IEC 60536
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Reach Free Of Svhc:
- Yes
- Cad Overall Depth:
- 31 mm
- Sustainable Offer Status:
- Green Premium product
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Operator Profile:
- yellow flush, unmarked
- Range Of Product:
- Harmony XB4
- Head Type:
- built-in-flush
- Ambient Air Temperature For Storage:
- -40-70 °C
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
- Circularity Profile:
- ENVEOLI1808008EN
- Product Certifications:
- UL Listed || CSA || CCC || EAC
- Rohs Exemption Information:
- Yes
- Environmental Disclosure:
- ENVPEP1808008EN
- Warranty:
- 18 months
