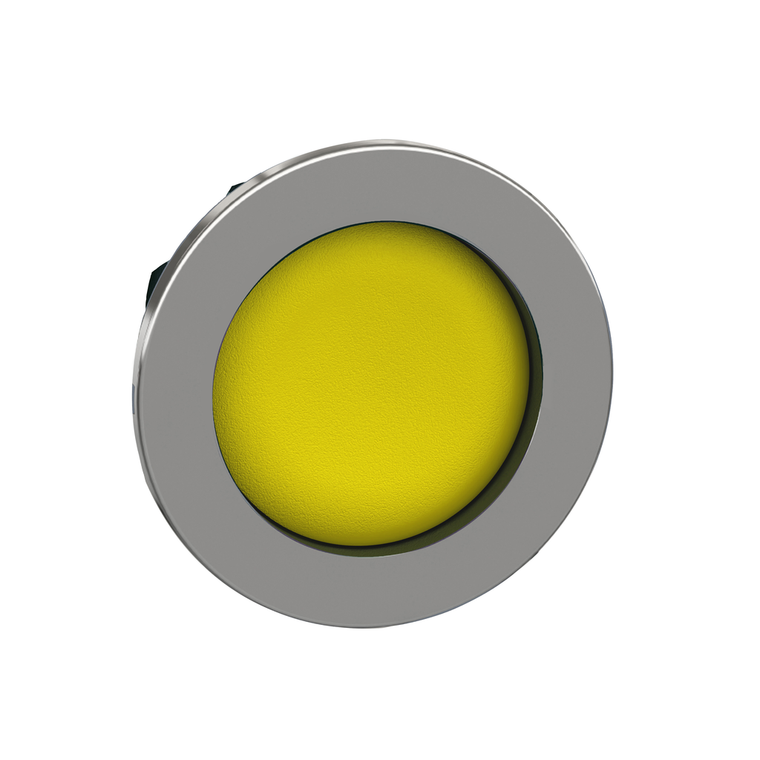

Schneider Electric ZB4FA56 Flush Yw Caps Pb Head Recessed

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ZB4FA56 Flush Yw Caps Pb Head Recessed

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB4FA56

UPC:

3606489581138

MPN:

Condition:

New

Cad Overall Width:

36.6 mm

Product Or Component Type:

head for non-illuminated push-button

Electrical Composition Code:

C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting

Protective Treatment:

TH

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E

Vibration Resistance:

5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27

Ik Degree Of Protection:

IK06 IEC 50102

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Device Presentation:

basic element

Rohs Exemption Information:

Yes

Ambient Air Temperature For Storage:

-40-70 °C

Warranty:

18 months

Ambient Air Temperature For Operation:

-40-70 °C

Device Short Name:

ZB4F

Type Of Operator:

spring return

Sustainable Offer Status:

Green Premium product

Reach Free Of Svhc:

Yes

Product Certifications:

UL Listed || CSA || CCC || EAC

Shape Of Signaling Unit Head:

round

Bezel Material:

chromium plated metal

Environmental Disclosure:

ENVPEP1808008EN

Cad Overall Height:

36.6 mm

Head Type:

built-in-flush

Sale Per Indivisible Quantity:

1

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mechanical Durability:

10000000 cycles

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Circularity Profile:

ENVEOLI1808008EN

China Rohs Regulation:

X

Cad Overall Depth:

31 mm

Range Of Product:

Harmony XB4

Mercury Free:

Yes

Toxic Heavy Metal Free:

Yes

Operator Profile:

yellow recessed, unmarked

Overvoltage Category:

class I IEC 60536

Standards:

CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1

Mounting Diameter:

30.5 mm
