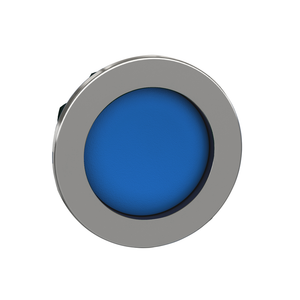

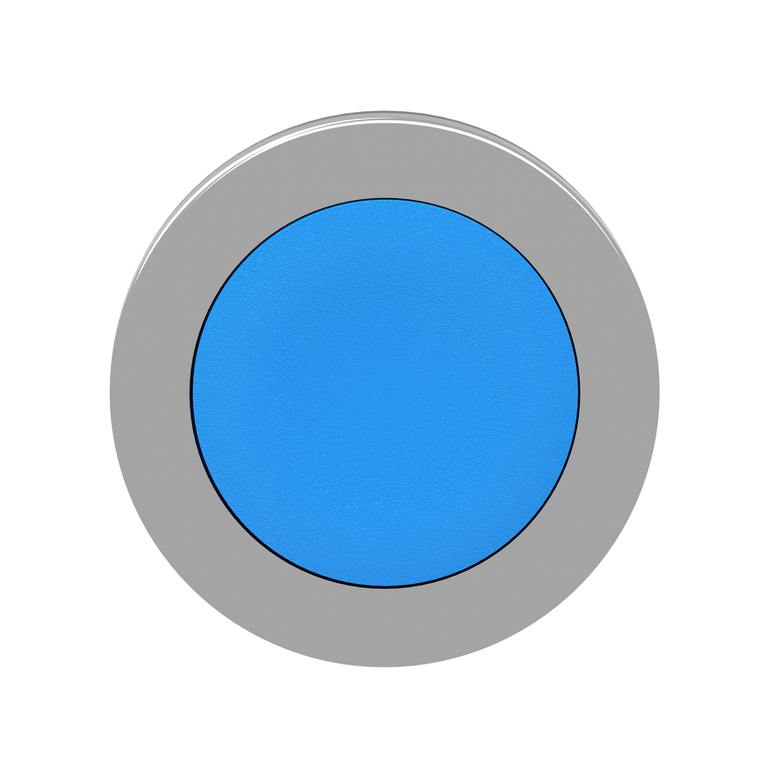

Schneider Electric ZB4FA6 Flush Bl Caps Pb Head
Schneider Electric
$13.30
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Cad Overall Depth:
- 31 mm
- Ik Degree Of Protection:
- IK06 IEC 50102
- Ambient Air Temperature For Storage:
- -40-70 °C
- Head Type:
- built-in-flush
- Warranty:
- 18 months
- Sale Per Indivisible Quantity:
- 1
- Mechanical Durability:
- 10000000 cycles
- China Rohs Regulation:
- X
- Device Presentation:
- basic element
- Overvoltage Category:
- class I IEC 60536
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
- Cad Overall Height:
- 36.6 mm
- Mercury Free:
- Yes
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Cad Overall Width:
- 36.6 mm
- Mounting Diameter:
- 30.5 mm
- Type Of Operator:
- spring return
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Ambient Air Temperature For Operation:
- -40-70 °C
- Circularity Profile:
- ENVEOLI1808008EN
- Toxic Heavy Metal Free:
- Yes
- Bezel Material:
- chromium plated metal
- Standards:
- CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-5-4 || UL 508 || IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
- Product Certifications:
- UL Listed || CSA || CCC || EAC
- Shape Of Signaling Unit Head:
- round
- Environmental Disclosure:
- ENVPEP1808008EN
- Protective Treatment:
- TH
- Reach Free Of Svhc:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Sustainable Offer Status:
- Green Premium product
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Range Of Product:
- Harmony XB4
- Rohs Exemption Information:
- Yes
- Device Short Name:
- ZB4F
- Product Or Component Type:
- head for non-illuminated push-button
- Operator Profile:
- blue flush, unmarked
