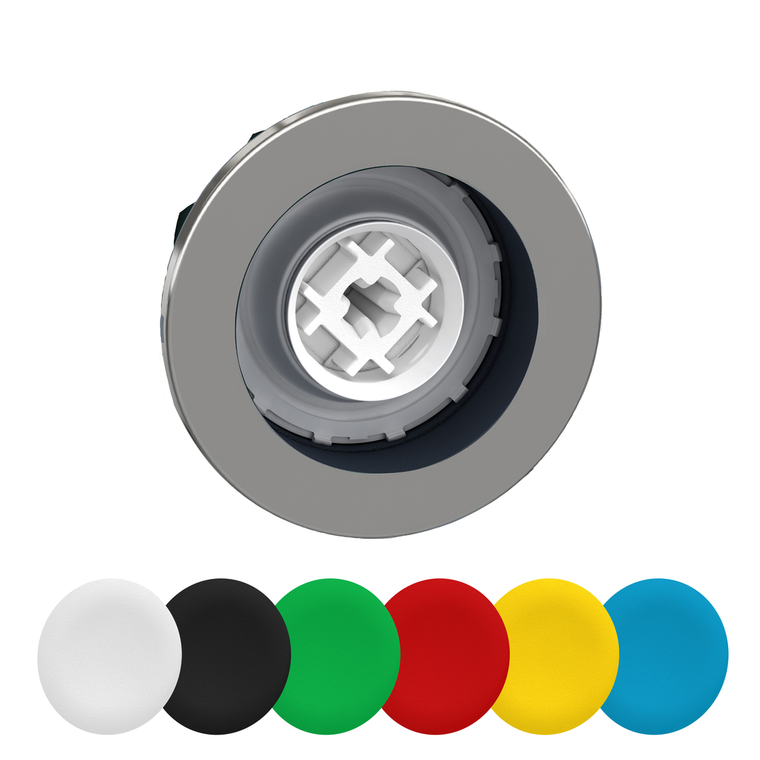

Schneider Electric ZB4FA9 Flush Pb Head 6 Colored Standard
Schneider Electric
$13.30
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E
- Device Presentation:
- basic element
- Device Short Name:
- ZB4F
- China Rohs Regulation:
- X
- Product Or Component Type:
- head for non-illuminated push-button
- Product Certifications:
- UL Listed || CSA || CCC || EAC
- Head Type:
- built-in-flush
- Overvoltage Category:
- class I IEC 60536
- Rohs Exemption Information:
- Yes
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Cad Overall Width:
- 36.6 mm
- Ambient Air Temperature For Storage:
- -40-70 °C
- Sustainable Offer Status:
- Green Premium product
- Protective Treatment:
- TH
- Sale Per Indivisible Quantity:
- 1
- Standards:
- CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Type Of Operator:
- spring return
- Range Of Product:
- Harmony XB4
- Operator Profile:
- 6 colours choice flush, unmarked
- Circularity Profile:
- ENVEOLI1808008EN
- Cad Overall Depth:
- 31 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc:
- Yes
- Bezel Material:
- chromium plated metal
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
- Mounting Diameter:
- 30.5 mm
- Ik Degree Of Protection:
- IK06 IEC 50102
- Toxic Heavy Metal Free:
- Yes
- Environmental Disclosure:
- ENVPEP1808008EN
- Mercury Free:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Shape Of Signaling Unit Head:
- round
- Mechanical Durability:
- 10000000 cycles
- Warranty:
- 18 months
- Cad Overall Height:
- 36.6 mm
- Ambient Air Temperature For Operation:
- -40-70 °C
