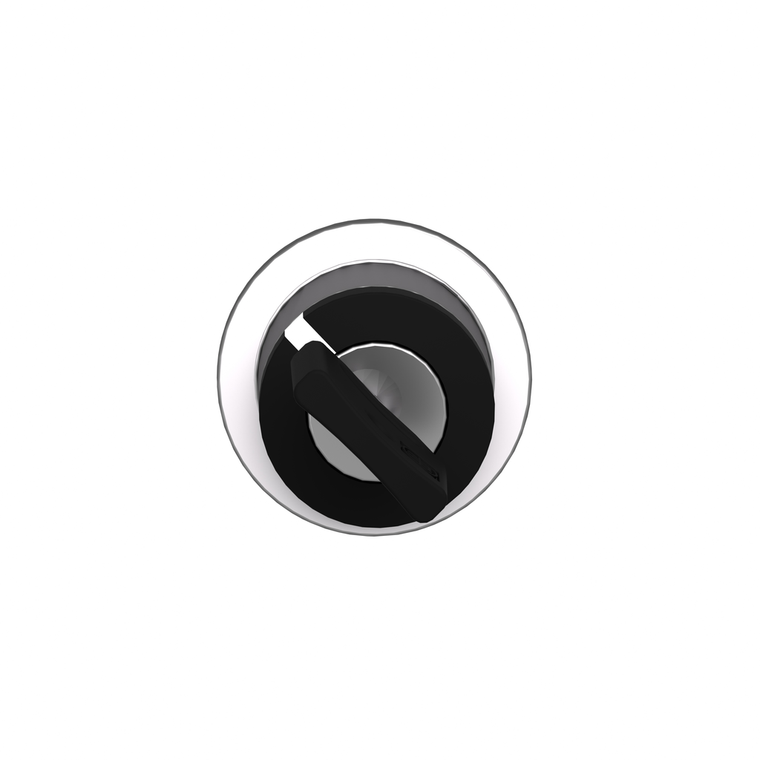

Schneider Electric ZB4FG2 Flush Sw Head Key455 2Pos Stay Put
This 30.5 mm key selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete key selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
- Device Presentation:
- basic element
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1
- Net Weight:
- 0.133 kg
- Circularity Profile:
- ENVEOLI1808008EN
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Operator Position Information:
- 2 positions 90°
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Product Or Component Type:
- head for key selector switch
- Mechanical Durability:
- 1000000 cycles
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Warranty:
- 18 months
- Key Withdrawal Position:
- left
- Environmental Disclosure:
- ENVPEP1808008EN
- China Rohs Regulation:
- X
- Type Of Operator:
- stay put
- Ambient Air Temperature For Storage:
- -40-70 °C
- Standards:
- CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
- Mercury Free:
- Yes
- Rohs Exemption Information:
- Yes
- Cad Overall Height:
- 36.6 mm
- Ik Degree Of Protection:
- IK06
- Range Of Product:
- Harmony XB4
- Device Short Name:
- ZB4F
- Mounting Diameter:
- 30.5 mm
- Protective Treatment:
- TH
- Product Certifications:
- UL Listed || CSA || CCC || EAC
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Overvoltage Category:
- class I IEC 60536
- Ambient Air Temperature For Operation:
- -40-70 °C
- Bezel Material:
- chromium plated metal
- Shape Of Signaling Unit Head:
- round
- Cad Overall Depth:
- 49 mm
- Sustainable Offer Status:
- Green Premium product
- Cad Overall Width:
- 36.6 mm
- Type Of Keylock:
- key 455
- Sale Per Indivisible Quantity:
- 1
- Operator Profile:
- black key switch
- Head Type:
- built-in-flush
