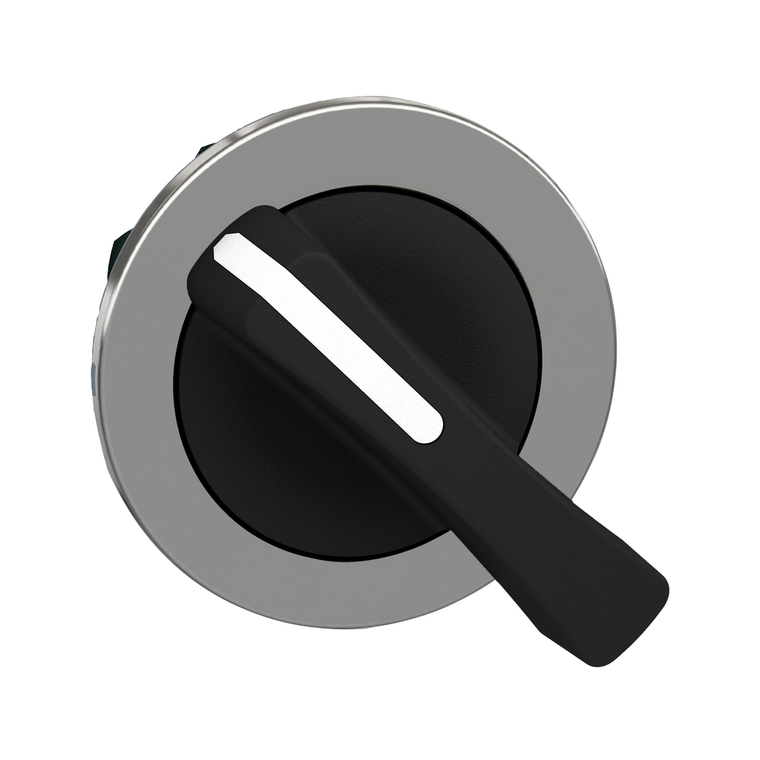

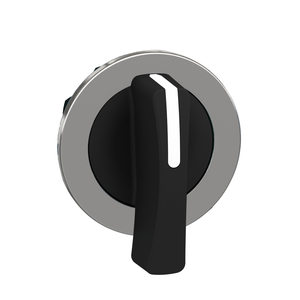

Schneider Electric ZB4FJ2 Flush Bk Sw Head Long Handle 2P Stay Put
Schneider Electric
$24.30
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB4FJ2 Flush Bk Sw Head Long Handle 2P Stay Put
This 30.5 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ik Degree Of Protection:
- IK06 IEC 50102
- Device Presentation:
- basic element
- Cad Overall Height:
- 43 mm
- Mechanical Durability:
- 1000000 cycles
- Product Certifications:
- UL Listed || CSA || CCC || EAC
- Type Of Operator:
- stay put
- Net Weight:
- 0.078 kg
- Protective Treatment:
- TH
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Cad Overall Depth:
- 47 mm
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1
- Standards:
- CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
- China Rohs Regulation:
- X
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Operator Profile:
- black long handle
- Range Of Product:
- Harmony XB4
- Sustainable Offer Status:
- Green Premium product
- Ambient Air Temperature For Storage:
- -40-70 °C
- Mounting Diameter:
- 30.5 mm
- Sale Per Indivisible Quantity:
- 1
- Cad Overall Width:
- 36.6 mm
- Mercury Free:
- Yes
- Circularity Profile:
- ENVEOLI1808008EN
- Rohs Exemption Information:
- Yes
- Operator Position Information:
- 2 positions 90°
- Shape Of Signaling Unit Head:
- round
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
- Bezel Material:
- chromium plated metal
- Reach Free Of Svhc:
- Yes
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Toxic Heavy Metal Free:
- Yes
- Device Short Name:
- ZB4F
- Product Or Component Type:
- head for selector switch
- Overvoltage Category:
- class I IEC 60536
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Environmental Disclosure:
- ENVPEP1808008EN
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Ambient Air Temperature For Operation:
- -40-70 °C
- Head Type:
- built-in-flush
- Catalog:
- View
- Datasheet:
- View
