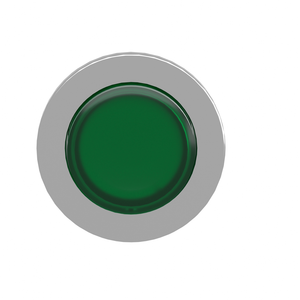

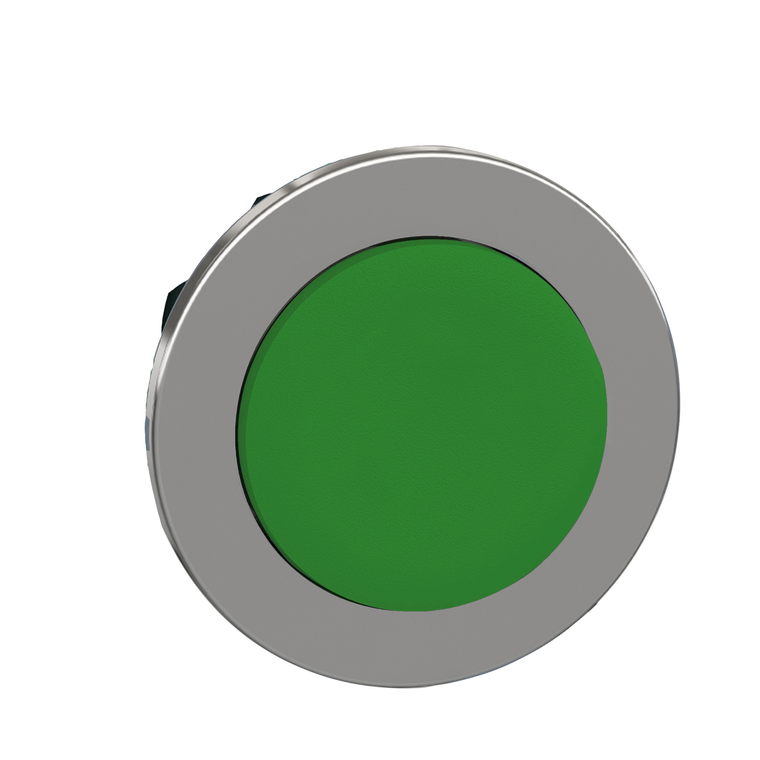

Schneider Electric ZB4FL3 Flush Gr Projecting Pb Head
Schneider Electric
$13.30
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Bezel Material:
- chromium plated metal
- Mechanical Durability:
- 10000000 cycles
- Cad Overall Height:
- 36.6 mm
- Mercury Free:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Environmental Disclosure:
- ENVPEP1808008EN
- Shape Of Signaling Unit Head:
- round
- Circularity Profile:
- ENVEOLI1808008EN
- Device Short Name:
- ZB4F
- Product Or Component Type:
- head for non-illuminated push-button
- Standards:
- CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
- Protective Treatment:
- TH
- Mounting Diameter:
- 30.5 mm
- Operator Profile:
- green projecting, unmarked
- Product Certifications:
- UL Listed || CSA || CCC || EAC
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E
- Warranty:
- 18 months
- Sale Per Indivisible Quantity:
- 1
- Ambient Air Temperature For Storage:
- -40-70 °C
- Device Presentation:
- basic element
- Ambient Air Temperature For Operation:
- -40-70 °C
- Reach Free Of Svhc:
- Yes
- Type Of Operator:
- spring return
- Head Type:
- built-in-flush
- Cad Overall Depth:
- 33 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation:
- X
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Ik Degree Of Protection:
- IK06 IEC 50102
- Cad Overall Width:
- 36.6 mm
- Toxic Heavy Metal Free:
- Yes
- Rohs Exemption Information:
- Yes
- Range Of Product:
- Harmony XB4
- Sustainable Offer Status:
- Green Premium product
- Overvoltage Category:
- class I IEC 60536
