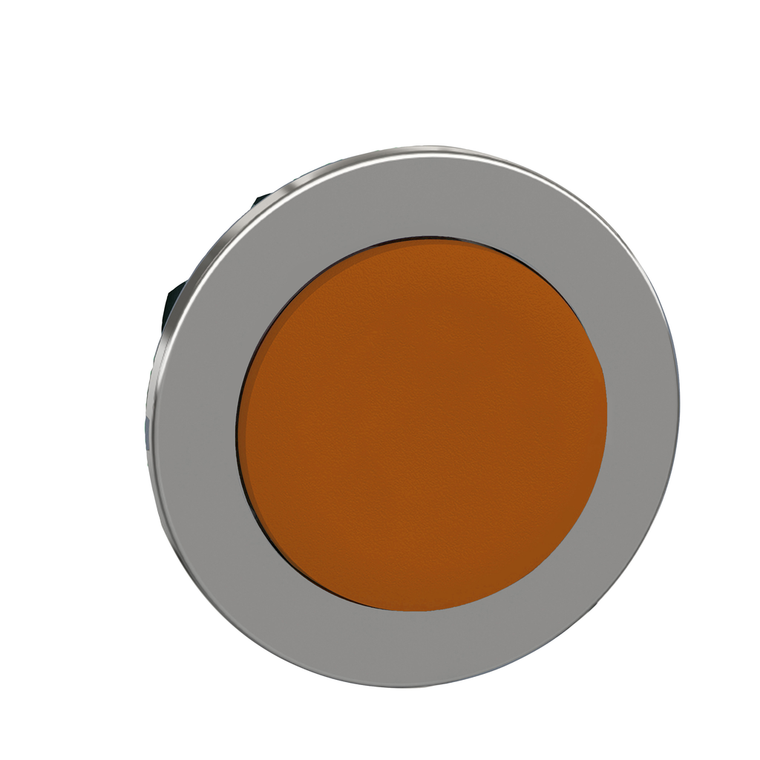

Schneider Electric ZB4FL5 Flush Or Projecting Pb Head
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
- Mechanical Durability:
- 10000000 cycles
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Product Certifications:
- UL Listed || CSA || CCC || EAC
- Type Of Operator:
- spring return
- Cad Overall Height:
- 36.6 mm
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Ambient Air Temperature For Storage:
- -40-70 °C
- Head Type:
- built-in-flush
- Cad Overall Width:
- 36.6 mm
- Standards:
- CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
- Rohs Exemption Information:
- Yes
- Bezel Material:
- chromium plated metal
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Warranty:
- 18 months
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Cad Overall Depth:
- 33 mm
- Range Of Product:
- Harmony XB4
- Ik Degree Of Protection:
- IK06 IEC 50102
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E
- Operator Profile:
- orange projecting, unmarked
- Device Short Name:
- ZB4F
- Circularity Profile:
- ENVEOLI1808008EN
- Product Or Component Type:
- head for non-illuminated push-button
- Mounting Diameter:
- 30.5 mm
- China Rohs Regulation:
- X
- Sustainable Offer Status:
- Green Premium product
- Reach Free Of Svhc:
- Yes
- Protective Treatment:
- TH
- Environmental Disclosure:
- ENVPEP1808008EN
- Sale Per Indivisible Quantity:
- 1
- Overvoltage Category:
- class I IEC 60536
- Shape Of Signaling Unit Head:
- round
- Ambient Air Temperature For Operation:
- -40-70 °C
- Mercury Free:
- Yes
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Toxic Heavy Metal Free:
- Yes
- Device Presentation:
- basic element
