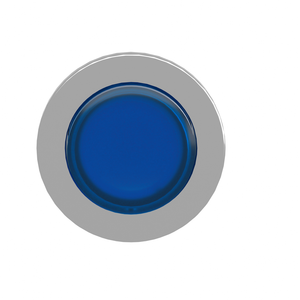

Schneider Electric ZB4FL6 Flush Bl Projecting Pb Head
Schneider Electric
$13.30
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
- Device Presentation:
- basic element
- Environmental Disclosure:
- ENVPEP1808008EN
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Warranty:
- 18 months
- China Rohs Regulation:
- X
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Protective Treatment:
- TH
- Product Certifications:
- UL Listed || CSA || CCC || EAC
- Type Of Operator:
- spring return
- Ik Degree Of Protection:
- IK06 IEC 50102
- Overvoltage Category:
- class I IEC 60536
- Cad Overall Depth:
- 33 mm
- Rohs Exemption Information:
- Yes
- Cad Overall Width:
- 36.6 mm
- Shape Of Signaling Unit Head:
- round
- Mounting Diameter:
- 30.5 mm
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Device Short Name:
- ZB4F
- Cad Overall Height:
- 36.6 mm
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E
- Mechanical Durability:
- 10000000 cycles
- Bezel Material:
- chromium plated metal
- Mercury Free:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Toxic Heavy Metal Free:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
- Circularity Profile:
- ENVEOLI1808008EN
- Reach Free Of Svhc:
- Yes
- Product Or Component Type:
- head for non-illuminated push-button
- Sale Per Indivisible Quantity:
- 1
- Head Type:
- built-in-flush
- Ambient Air Temperature For Storage:
- -40-70 °C
- Standards:
- CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
- Range Of Product:
- Harmony XB4
- Operator Profile:
- blue projecting, unmarked
- Ambient Air Temperature For Operation:
- -40-70 °C
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6
