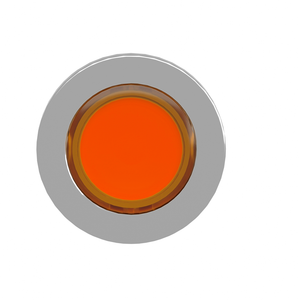

Schneider Electric ZB4FV033 Flush Gr Projecting Pl Head Led

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ZB4FV033 Flush Gr Projecting Pl Head Led

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB4FV033

UPC:

3606489582548

MPN:

Condition:

New

Electrical Composition Code:

P1 front mounting integral LED || P2 front mounting integral LED and transformer

Bezel Material:

chromium plated metal

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Cad Overall Depth:

31 mm

Device Presentation:

basic element

Mercury Free:

Yes

Toxic Heavy Metal Free:

Yes

Reach Free Of Svhc:

Yes

Mounting Diameter:

30.5 mm

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27

Circularity Profile:

ENVEOLI1808008EN

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Product Or Component Type:

head for pilot light

Sustainable Offer Status:

Green Premium product

Head Type:

built-in-flush

Ik Degree Of Protection:

IK06 IEC 50102

Environmental Disclosure:

ENVPEP1808008EN

Shape Of Signaling Unit Head:

round

Ambient Air Temperature For Storage:

-40-70 °C

Sale Per Indivisible Quantity:

1

Cad Overall Height:

36.6 mm

Cad Overall Width:

36.6 mm

Device Short Name:

ZB4F

Product Compatibility:

universal LED

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Protective Treatment:

TH

Product Certifications:

UL Listed || CSA || CCC || EAC

China Rohs Regulation:

X

Rohs Exemption Information:

Yes

Vibration Resistance:

5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6

Standards:

IEC 60947-5-4 || IEC 60947-5-1 || UL 508 || CSA C22.2 No 14 || IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1

Warranty:

18 months

Overvoltage Category:

class I IEC 60536

Ambient Air Temperature For Operation:

-40-70 °C

Range Of Product:

Harmony XB4

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Operator Additional Information:

with plain lens

Cap/Operator Or Lens Colour:

green

Net Weight:

0.058 kg
