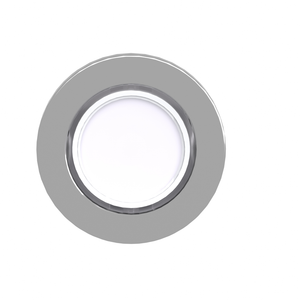

Schneider Electric ZB4FW113 Flush Wh Projecting Ill Pb Head Led
Schneider Electric
$13.30
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB4FW113 Flush Wh Projecting Ill Pb Head Led
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30.5 mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its illuminated clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
- Cad Overall Depth:
- 35 mm
- China Rohs Regulation:
- X
- Ik Degree Of Protection:
- IK06 EN 50102
- Reach Free Of Svhc:
- Yes
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Net Weight:
- 0.06 kg
- Product Compatibility:
- universal LED
- Device Short Name:
- ZB4F
- Head Type:
- built-in-flush
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
- Environmental Disclosure:
- ENVPEP1808008EN
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Range Of Product:
- Harmony XB4
- Mounting Diameter:
- 30.5 mm
- Protective Treatment:
- TH
- Device Presentation:
- basic element
- Toxic Heavy Metal Free:
- Yes
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Product Or Component Type:
- head for illuminated push-button
- Ambient Air Temperature For Operation:
- -40-70 °C
- Mechanical Durability:
- 10000000 cycles
- Cad Overall Height:
- 36.6 mm
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Sustainable Offer Status:
- Green Premium product
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
- Operator Additional Information:
- with plain lens
- Circularity Profile:
- ENVEOLI1808008EN
- Standards:
- CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Rohs Exemption Information:
- Yes
- Bezel Material:
- chromium plated metal
- Shape Of Signaling Unit Head:
- round
- Warranty:
- 18 months
- Operator Profile:
- white projecting, unmarked
- Cad Overall Width:
- 36.6 mm
- Mercury Free:
- Yes
- Overvoltage Category:
- class I IEC 60536
- Sale Per Indivisible Quantity:
- 1
- Ambient Air Temperature For Storage:
- -40-70 °C
- Type Of Operator:
- spring return
- Product Certifications:
- UL Listed || CSA || CCC || EAC
