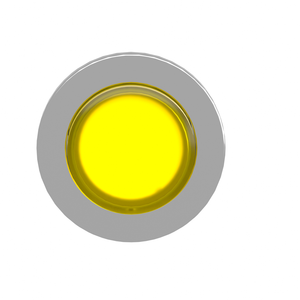

Schneider Electric ZB4FW383 Flush Ill Pb Yw With Flush Caps
This 30.5 mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its illuminated clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
- Cad Overall Depth:
- 31 mm
- Operator Profile:
- yellow flush, unmarked
- Protective Treatment:
- TH
- Rohs Exemption Information:
- Yes
- Standards:
- CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
- Shape Of Signaling Unit Head:
- round
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Product Or Component Type:
- head for illuminated push-button
- Reach Free Of Svhc:
- Yes
- Mounting Diameter:
- 30.5 mm
- Warranty:
- 18 months
- Head Type:
- built-in-flush
- Sale Per Indivisible Quantity:
- 1
- Operator Additional Information:
- with plain lens
- Device Short Name:
- ZB4F
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Overvoltage Category:
- class I IEC 60536
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Mechanical Durability:
- 10000000 cycles
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
- Ambient Air Temperature For Storage:
- -40-70 °C
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
- Cad Overall Width:
- 36.6 mm
- Device Presentation:
- basic element
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Product Compatibility:
- universal LED
- Bezel Material:
- chromium plated metal
- Circularity Profile:
- ENVEOLI1808008EN
- Cad Overall Height:
- 36.6 mm
- Toxic Heavy Metal Free:
- Yes
- Sustainable Offer Status:
- Green Premium product
- China Rohs Regulation:
- X
- Ik Degree Of Protection:
- IK06 EN 50102
- Product Certifications:
- UL Listed || CSA || CCC || EAC
- Range Of Product:
- Harmony XB4
- Environmental Disclosure:
- ENVPEP1808008EN
- Ambient Air Temperature For Operation:
- -40-70 °C
- Mercury Free:
- Yes
- Net Weight:
- 0.06 kg
- Type Of Operator:
- spring return
