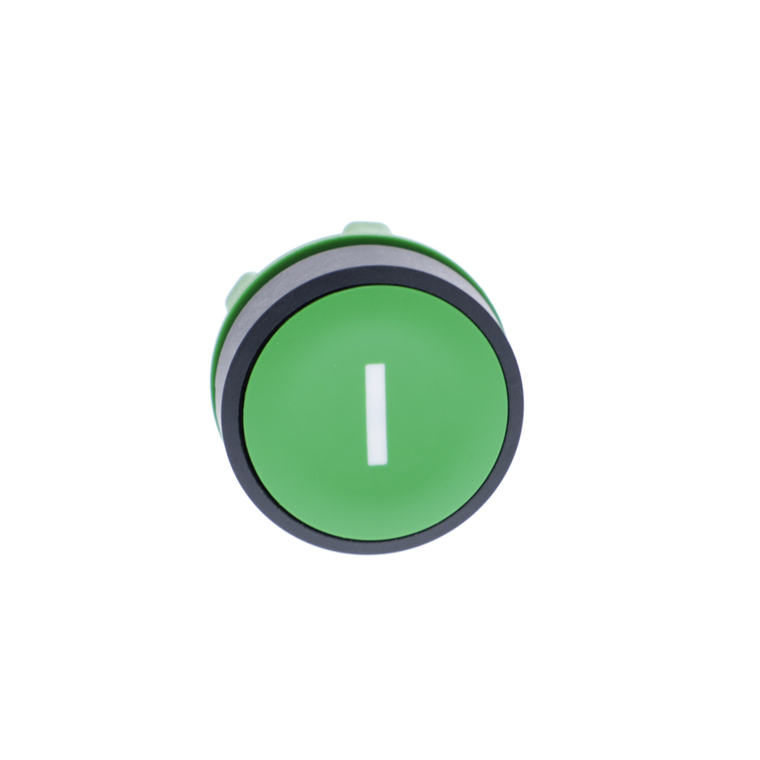

Schneider Electric ZB5AA331 Pushbutton Operator Head

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5AA331 Pushbutton Operator Head

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5AA331

UPC:

3389110904536

MPN:

Condition:

New

China Rohs Regulation:

X

Warranty:

18 months

Product Certifications:

DNV || LROS (Lloyds register of shipping) || BV || UL Listed || GL || CSA

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Station Name:

XALD 1...5 cut-outs || XALK 2...5 cut-outs

Rohs Exemption Information:

Yes

Mounting Diameter:

22 mm

Mechanical Durability:

10000000 cycles

Reach Free Of Svhc:

Yes

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Net Weight:

0.018 kg

Type Of Operator:

spring return

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury Free:

Yes

Product Or Component Type:

head for non-illuminated push-button

Ambient Air Temperature For Operation:

-40-70 °C

Sustainable Offer Status:

Green Premium product

Ik Degree Of Protection:

IK03 IEC 50102

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Overvoltage Category:

class II IEC 60536

Head Type:

standard

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Cad Overall Depth:

28 mm

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Standards:

CSA C22.2 No 14 || JIS C8201-5-1 || IEC 60947-5-1 || IEC 60947-5-4 || UL 508 || IEC 60947-1 || JIS C8201-1

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Device Presentation:

basic element

Protective Treatment:

TH

Bezel Material:

dark grey plastic

Device Short Name:

ZB5

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Shape Of Signaling Unit Head:

round

Ambient Air Temperature For Storage:

-40-70 °C

Electrical Composition Code:

C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting

Cad Overall Width:

29 mm

Cad Overall Height:

29 mm

Range Of Product:

Harmony XB5

Environmental Disclosure:

ENVPEP1710010EN

Operator Profile:

green flush, I white)

Sale Per Indivisible Quantity:

1

Toxic Heavy Metal Free:

Yes

Circularity Profile:

ENVEOLI1710010EN
