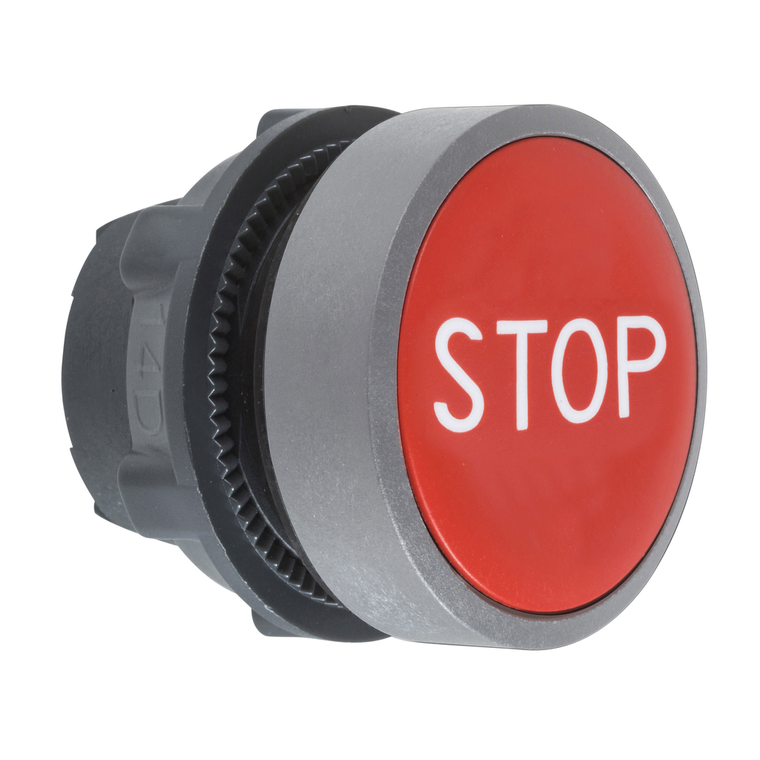

Schneider Electric ZB5AA434C0 Pushbutton Operator Head

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5AA434C0 Pushbutton Operator Head

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5AA434C0

UPC:

3606489762421

MPN:

Condition:

New

Cad Overall Depth:

28 mm

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Protective Treatment:

TH

Ambient Air Temperature For Operation:

-40-70 °C

Head Type:

standard

Station Name:

XALD 1...5 cut-outs || XALK 2...5 cut-outs

Ik Degree Of Protection:

IK03 IEC 50102

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Operator Profile:

red flush, STOP white)

China Rohs Regulation:

X

Mechanical Durability:

10000000 cycles

Product Or Component Type:

head for non-illuminated push-button

Electrical Composition Code:

C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting

Ip Degree Of Protection:

IP66 IEC 60529 || IP67

Mounting Diameter:

22 mm

Type Of Operator:

spring return

Ambient Air Temperature For Storage:

-40-70 °C

Sale Per Indivisible Quantity:

1

Standards:

JIS C8201-5-1 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || UL 508 || JIS C8201-1

Net Weight:

0.018 kg

Bezel Material:

plastic colour plated grey

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Rohs Exemption Information:

Yes

Shape Of Signaling Unit Head:

round

Product Certifications:

UL Listed || LROS (Lloyds register of shipping) || DNV || CSA || GL || BV

Overvoltage Category:

class II IEC 60536

Cad Overall Width:

29 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury Free:

Yes

Cad Overall Height:

29 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Range Of Product:

Harmony XB5

Device Short Name:

ZB5

Datasheet:

View
