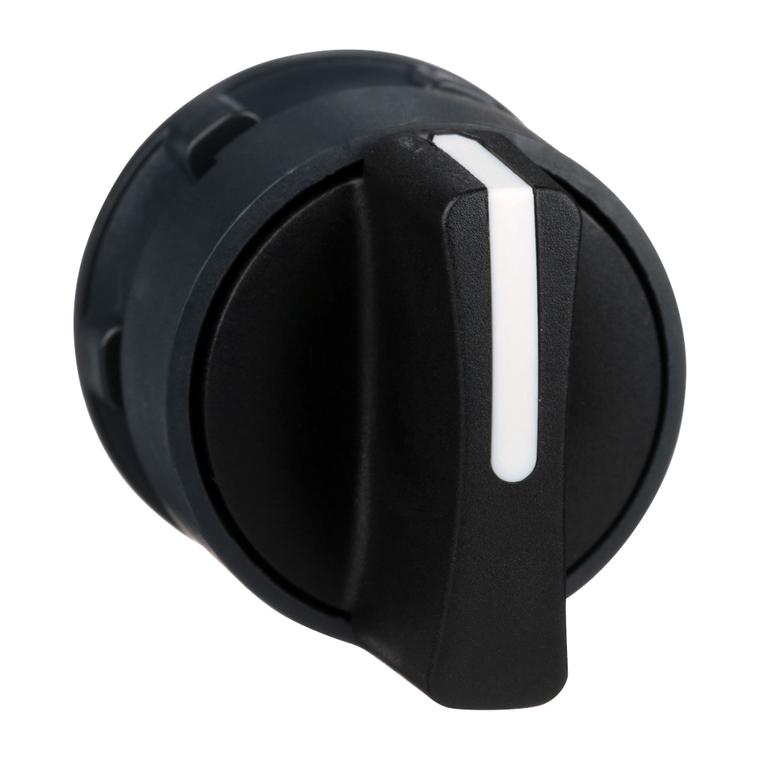

Schneider Electric ZB5AD2 Selector Operating Head
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
- Ip Degree Of Protection:
- IP67 IEC 60529 || IP69 IEC 60529 || IP69K
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Warranty:
- 18 months
- Protective Treatment:
- TH
- Shape Of Signaling Unit Head:
- round
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ambient Air Temperature For Storage:
- -40-70 °C
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Device Short Name:
- ZB5
- Device Presentation:
- basic element
- China Rohs Regulation:
- X
- Bezel Material:
- dark grey plastic
- Rohs Exemption Information:
- Yes
- Net Weight:
- 0.017 kg
- Reach Free Of Svhc:
- Yes
- Type Of Operator:
- stay put
- Operator Profile:
- black standard handle
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Mercury Free:
- Yes
- Cad Overall Depth:
- 46 mm
- Sustainable Offer Status:
- Green Premium product
- Sale Per Indivisible Quantity:
- 1
- Cad Overall Width:
- 29 mm
- Product Certifications:
- GL || CSA || BV || DNV || LROS (Lloyds register of shipping) || UL Listed
- Mechanical Durability:
- 1000000 cycles
- Cad Overall Height:
- 29 mm
- Head Type:
- standard
- Mounting Diameter:
- 22 mm
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Overvoltage Category:
- class II IEC 60536
- Product Or Component Type:
- head for selector switch
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Range Of Product:
- Harmony XALF || Harmony XB5
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Operation:
- -40-70 °C
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1
- Environmental Disclosure:
- ENVPEP1710010EN
- Ik Degree Of Protection:
- IK06 IEC 50102
- Operator Position Information:
- 2 positions 90°
- Standards:
- JIS C8201-5-1 || CSA C22.2 No 14 || UL 508 || IEC 60947-1 || IEC 60947-5-4 || IEC 60947-5-1 || JIS C8201-1
- Circularity Profile:
- ENVEOLI1710010EN
- Toxic Heavy Metal Free:
- Yes
