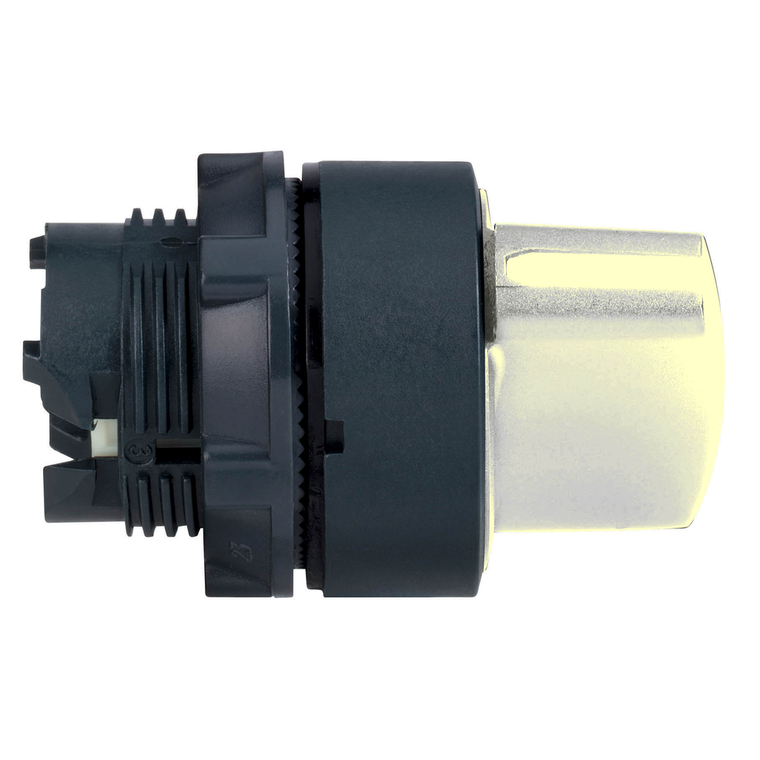

Schneider Electric ZB5AD301 Selector Operating Head
Schneider Electric
$36.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This switch head with white standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It makes it ideal for operation in harsh environments.
- Product Or Component Type:
- head for selector switch
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Overvoltage Category:
- class II IEC 60536
- Rohs Exemption Information:
- Yes
- Bezel Material:
- dark grey plastic
- Net Weight:
- 0.017 kg
- Head Type:
- standard
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Cad Overall Height:
- 29 mm
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Toxic Heavy Metal Free:
- Yes
- Operator Profile:
- white standard handle
- Mercury Free:
- Yes
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Shape Of Signaling Unit Head:
- round
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Ambient Air Temperature For Operation:
- -40-70 °C
- Range Of Product:
- Harmony XB5
- Ambient Air Temperature For Storage:
- -40-70 °C
- Operator Position Information:
- 3 positions +/- 45°
- Reach Free Of Svhc:
- Yes
- Device Presentation:
- basic element
- China Rohs Regulation:
- X
- Mechanical Durability:
- 1000000 cycles
- Sale Per Indivisible Quantity:
- 1
- Device Short Name:
- ZB5
- Protective Treatment:
- TH
- Ip Degree Of Protection:
- IP67 IEC 60529 || IP69 IEC 60529 || IP69K
- Type Of Operator:
- stay put
- Ik Degree Of Protection:
- IK06 IEC 50102
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Product Certifications:
- CSA || UL Listed || DNV || LROS (Lloyds register of shipping) || BV || GL
- Circularity Profile:
- ENVEOLI1710010EN
- Cad Overall Depth:
- 46 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Cad Overall Width:
- 29 mm
- Environmental Disclosure:
- ENVPEP1710010EN
- Mounting Diameter:
- 22 mm
- Sustainable Offer Status:
- Green Premium product
- Warranty:
- 18 months
- Standards:
- JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || JIS C8201-1
- Datasheet:
- View
