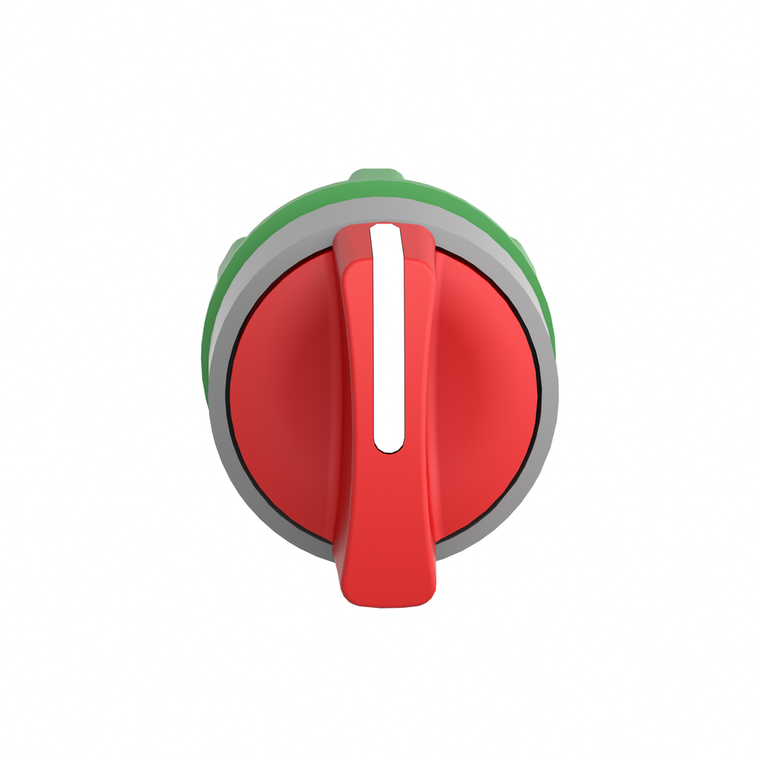

Schneider Electric ZB5AD304C0 Selector Operating Head
Schneider Electric
$26.98
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments.
- Cad Overall Width:
- 29 mm
- Mercury Free:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Product Or Component Type:
- head for selector switch
- Mounting Diameter:
- 22 mm
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Operator Position Information:
- 3 positions +/- 45°
- Net Weight:
- 0.017 kg
- Toxic Heavy Metal Free:
- Yes
- Ambient Air Temperature For Storage:
- -40-70 °C
- Device Presentation:
- basic element
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Bezel Material:
- plastic colour plated grey
- Standards:
- EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || UL 508 || JIS C8201-1
- Sale Per Indivisible Quantity:
- 1
- Rohs Exemption Information:
- Yes
- Type Of Operator:
- stay put
- Cad Overall Depth:
- 46 mm
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Mechanical Durability:
- 1000000 cycles
- Shape Of Signaling Unit Head:
- round
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ip Degree Of Protection:
- IP67 IEC 60529
- Protective Treatment:
- TH
- Range Of Product:
- Harmony XB5
- Ik Degree Of Protection:
- IK06 IEC 50102
- Product Certifications:
- LROS (Lloyds register of shipping) || BV || CSA || GL || UL Listed || DNV
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- China Rohs Regulation:
- X
- Head Type:
- standard
- Operator Profile:
- red standard handle
- Device Short Name:
- ZB5
- Reach Free Of Svhc:
- Yes
- Cad Overall Height:
- 29 mm
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3
- Overvoltage Category:
- class II IEC 60536
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Ambient Air Temperature For Operation:
- -40-70 °C
