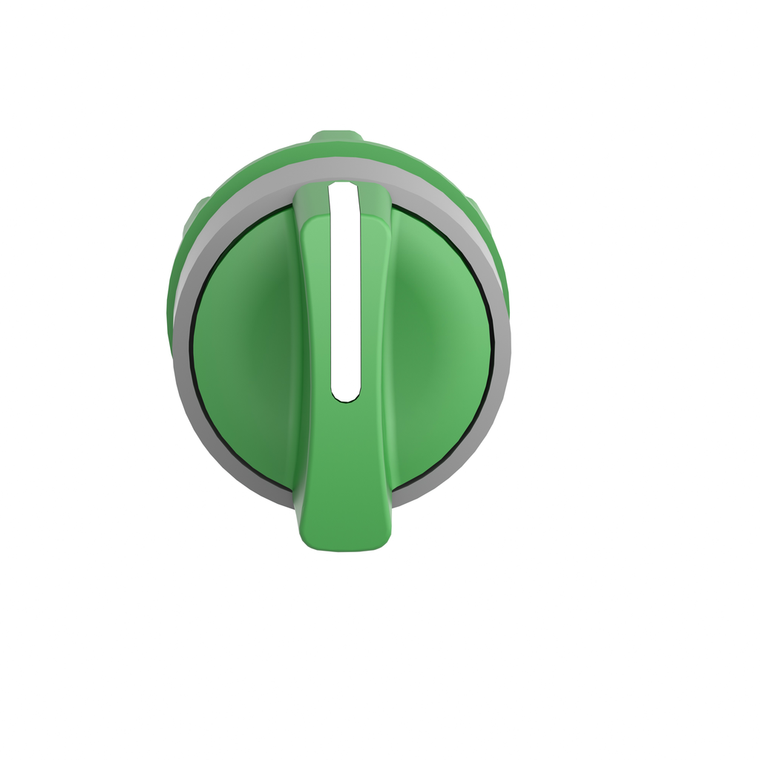

Schneider Electric ZB5AD803C0 Selector Operating Head
Schneider Electric
$26.98
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments.
- Bezel Material:
- plastic colour plated grey
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3
- Mechanical Durability:
- 1000000 cycles
- Ambient Air Temperature For Storage:
- -40-70 °C
- Rohs Exemption Information:
- Yes
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Cad Overall Width:
- 29 mm
- Operator Profile:
- green standard handle
- Net Weight:
- 0.017 kg
- Range Of Product:
- Harmony XB5
- Cad Overall Height:
- 29 mm
- Head Type:
- standard
- Product Or Component Type:
- head for selector switch
- Ik Degree Of Protection:
- IK06 IEC 50102
- Toxic Heavy Metal Free:
- Yes
- Overvoltage Category:
- class II IEC 60536
- Standards:
- CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-5-1 || JIS C8201-1
- Mercury Free:
- Yes
- Ip Degree Of Protection:
- IP67 IEC 60529
- Product Certifications:
- UL Listed || CSA || LROS (Lloyds register of shipping) || DNV || GL || BV
- Sale Per Indivisible Quantity:
- 1
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Operator Position Information:
- 3 positions +/- 45°
- Mounting Diameter:
- 22 mm
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Ambient Air Temperature For Operation:
- -40-70 °C
- Protective Treatment:
- TH
- Reach Free Of Svhc:
- Yes
- Type Of Operator:
- right to centre spring return
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Device Presentation:
- basic element
- Device Short Name:
- ZB5
- Shape Of Signaling Unit Head:
- round
- Cad Overall Depth:
- 46 mm
- China Rohs Regulation:
- X
