Schneider Electric ZB5AG012 Key Selector Operating He

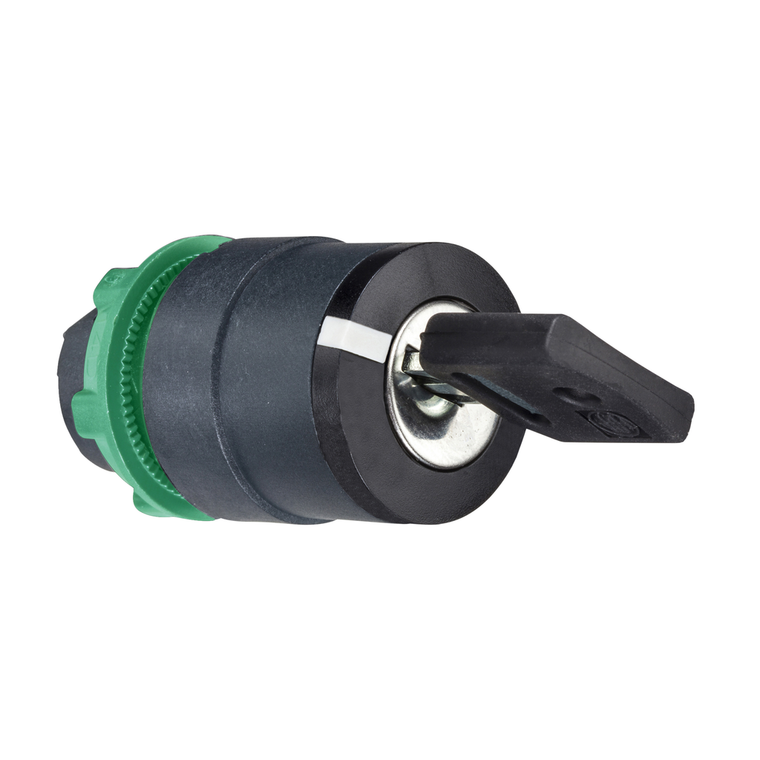

This head with key (key no.421E) provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete key selector switch units. It provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Bezel Material:
- dark grey plastic
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Mechanical Durability:
- 1000000 cycles
- Operator Profile:
- black key switch
- Sustainable Offer Status:
- Green Premium product
- Device Presentation:
- basic element
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ik Degree Of Protection:
- IK06 IEC 50102
- Mounting Diameter:
- 22 mm
- Cad Overall Width:
- 29 mm
- Ambient Air Temperature For Operation:
- -40-70 °C
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Type Of Keylock:
- key 421E
- China Rohs Regulation:
- X
- Rohs Exemption Information:
- Yes
- Product Or Component Type:
- head for key selector switch
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Key Withdrawal Position:
- in any position
- Shape Of Signaling Unit Head:
- round
- Circularity Profile:
- ENVEOLI1710010EN
- Net Weight:
- 0.057 kg
- Sale Per Indivisible Quantity:
- 1
- Device Short Name:
- ZB5
- Range Of Product:
- Harmony XB5
- Warranty:
- 18 months
- Overvoltage Category:
- class II IEC 60536
- Mercury Free:
- Yes
- Cad Overall Height:
- 29 mm
- Environmental Disclosure:
- ENVPEP1710010EN
- Electrical Composition Code:
- C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3
- Type Of Operator:
- stay put
- Product Certifications:
- DNV || UL Listed || LROS (Lloyds register of shipping) || CSA || GL || BV
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Head Type:
- standard
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Cad Overall Depth:
- 72 mm
- Protective Treatment:
- TH
- Ambient Air Temperature For Storage:
- -40-70 °C
- Standards:
- EN/IEC 60947-1 || CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || JIS C8201-5-1 || JIS C8201-1
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Operator Position Information:
- 3 positions +/- 45°
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
