Schneider Electric ZB5AG02D Key Selector Operating He

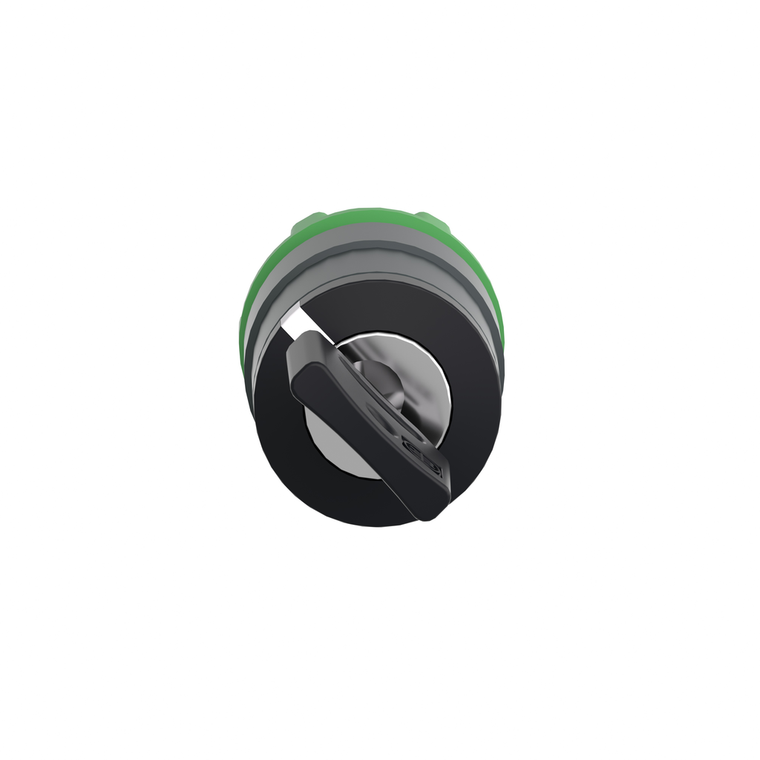

This head with key (key no.8D1) provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete key selector switch units. It provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Operator Profile:
- black key switch
- Product Certifications:
- UL Listed || GL || BV || DNV || LROS (Lloyds register of shipping) || CSA
- Circularity Profile:
- ENVEOLI1710010EN
- Range Of Product:
- Harmony XB5
- Standards:
- UL 508 || IEC 60947-5-4 || JIS C8201-5-1 || IEC 60947-1 || CSA C22.2 No 14 || IEC 60947-5-1 || JIS C8201-1
- Warranty:
- 18 months
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Device Presentation:
- basic element
- Sustainable Offer Status:
- Green Premium product
- Device Short Name:
- ZB5
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Head Type:
- standard
- Mercury Free:
- Yes
- Net Weight:
- 0.057 kg
- Cad Overall Height:
- 29 mm
- Ik Degree Of Protection:
- IK06 IEC 50102
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Shape Of Signaling Unit Head:
- round
- Mounting Diameter:
- 22 mm
- Environmental Disclosure:
- ENVPEP1710010EN
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Type Of Keylock:
- Dom 8D1
- China Rohs Regulation:
- X
- Ambient Air Temperature For Operation:
- -40-70 °C
- Type Of Operator:
- stay put
- Electrical Composition Code:
- C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3
- Sale Per Indivisible Quantity:
- 1
- Cad Overall Width:
- 29 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Cad Overall Depth:
- 72 mm
- Product Or Component Type:
- head for key selector switch
- Protective Treatment:
- TH
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Overvoltage Category:
- class II IEC 60536
- Operator Position Information:
- 2 positions 90°
- Key Withdrawal Position:
- right
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Bezel Material:
- dark grey plastic
- Rohs Exemption Information:
- Yes
- Mechanical Durability:
- 1000000 cycles
- Ambient Air Temperature For Storage:
- -40-70 °C
