Schneider Electric ZB5AG03D Key Selector Operating He

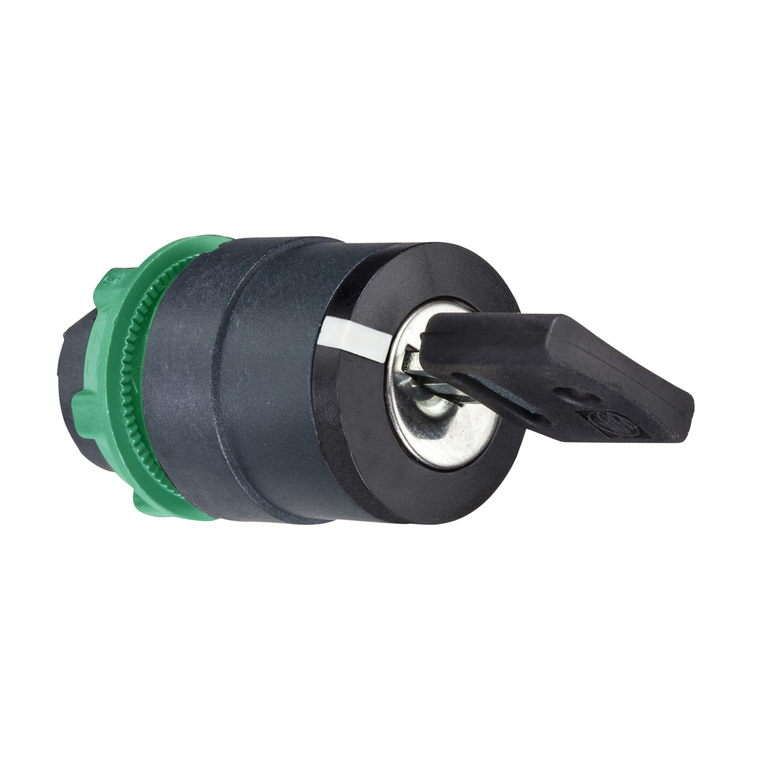

This head with key (key no.8D1) provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete key selector switch units. It provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Type Of Keylock:
- Dom 8D1
- Key Withdrawal Position:
- left and center
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ambient Air Temperature For Storage:
- -40-70 °C
- Electrical Composition Code:
- C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3
- Cad Overall Depth:
- 72 mm
- Product Certifications:
- DNV || UL Listed || GL || BV || CSA || LROS (Lloyds register of shipping)
- Standards:
- EN/IEC 60947-1 || EN/IEC 60947-5-1 || UL 508 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-5-4 || JIS C8201-1
- Ik Degree Of Protection:
- IK06 IEC 50102
- Head Type:
- standard
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Rohs Exemption Information:
- Yes
- Range Of Product:
- Harmony XB5
- Product Or Component Type:
- head for key selector switch
- Mounting Diameter:
- 22 mm
- Circularity Profile:
- ENVEOLI1710010EN
- Protective Treatment:
- TH
- Type Of Operator:
- stay put
- Device Short Name:
- ZB5
- Cad Overall Height:
- 29 mm
- Environmental Disclosure:
- ENVPEP1710010EN
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ambient Air Temperature For Operation:
- -40-70 °C
- Mercury Free:
- Yes
- Cad Overall Width:
- 29 mm
- Operator Profile:
- black key switch
- Net Weight:
- 0.057 kg
- Sustainable Offer Status:
- Green Premium product
- Mechanical Durability:
- 1000000 cycles
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Operator Position Information:
- 3 positions +/- 45°
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Sale Per Indivisible Quantity:
- 1
- Warranty:
- 18 months
- China Rohs Regulation:
- X
- Shape Of Signaling Unit Head:
- round
- Bezel Material:
- dark grey plastic
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Device Presentation:
- basic element
- Overvoltage Category:
- class II IEC 60536
